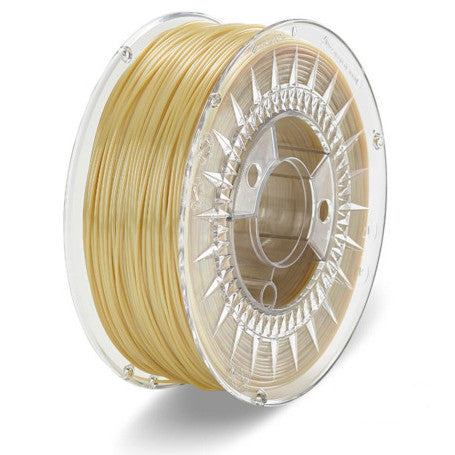

Ultem 9085 PEI 3D Printing Filament

PlastockSKU: RF13D.175.1000.NAT

Diameter (mm): 1.75
Weight (g): 1000
Colour: Natural
Price:
Sale price£213.79

All prices Ex VAT. Shipping calculated at checkout

Tolerance +/- 0.05 mm
Estimated Delivery 1-5 Working Days

Details

ULTEM™ 9085 FILAMENT (PEI) is a high performance polyetherimide blend product manufactured from ULTEM™ 9085 resin. It has an excellent combination of high mechanical strength, dimensional stability and heat resistance. It is also Inherently flame retardant and is classified UL94-V0

Raw Material Approvals

  • Aerospace FAR25.853 and OSU55/55
  • Rail EN45545 R6-HL3

Our filaments are produced from high-quality raw materials with close tolerances (+/- 0,05 mm) allowing precise and failure-free 3D printing. They are low emission, odour free, shrinkage-free and have good layer adhesion. They are compatible with all standard 3D printers and are delivered carefully spooled and packed in easy to use resealable zip bags.

If you have a requirement for printed or finished components please ask the Plastock team for more information.

Material ULTEM™ 9085 PEI
Tolerances (mm) +/- 0.05 mm
Density (g/cm³) 1.28
Water absorption (%) 0.15
Service temp long term max (°C) 170
Service temp long term min (°C) -
Yield stress (MPa) 94
Elongation at break (%) 70
Notched impact strength (kJ/m²) 10
Ball indentation hardness (MPa) 115
Shore hardness (scale D) -
Tensile modulus of elasticity (MPa) 2439
Heat deflection temperature (°C) 169
CLTE (10⁻⁶K⁻¹) 65
Thermal conductivity (W/(m*K) -
Melting temperature (°C) 330-350
Pressure nozzle temperature (°C) 360
Printing plate temperature (°C) 160
Build chamber temperature (°C) 90
Nozzle diameter - hardened steel (mm) 0.4
Print speed (mm/s) 45
Fan speed - activated on layer 4 (%) 30-35
Predrying temperature (°C) 120
Predrying time (h) 8
