HDPE

HDPE

High-Density Polyethylene (PE300)

High-Density Polyethylene (PE300)

High-Density Polyethylene (HDPE), often referred to as PE300, is a versatile, lightweight engineering plastic known for its exceptional chemical resistance and impact strength. As a "standard" grade of polyethylene, PE300 offers a superb balance of performance and cost-effectiveness, making it a staple material in industrial fabrication.

While it is less wear-resistant than its higher molecular weight cousins (HMWPE and UHMWPE), PE300 excels in environments requiring low moisture absorption, high rigidity and excellent weldability.

Key Properties

Mechanical & Physical

  • Exceptional Chemical Resistance
    Highly resistant to most acids, alkalis, and organic solvents.
  • Low Moisture Absorption
    Virtually waterproof, ensuring dimensional stability in humid or wet conditions.
  • High Impact Strength
    Maintains toughness even at very low temperatures.
  • Excellent Weldability
    Easily fabricated using hot gas, butt, or extrusion welding techniques.

Chemical & Thermal

  • Lightweight
    A low-density material that reduces the weight of large assemblies (floats in water).
  • FDA/EU Food Compliant
    Naturally physiologically safe, making it suitable for direct food contact.
  • Good Electrical Insulation
    High dielectric strength and volume resistivity for electrical housing.
  • UV Resistance
    Available in UV-stabilised grades for prolonged outdoor exposure.

COMMON APPLICATIONS

PE300 (HDPE) Extruded Black Sheet | Plastock
PE300 (HDPE) Extruded Black Sheet | Plastock
Polyethylene Sheet | Plastock

PE300 (HDPE) Extruded Black Sheet

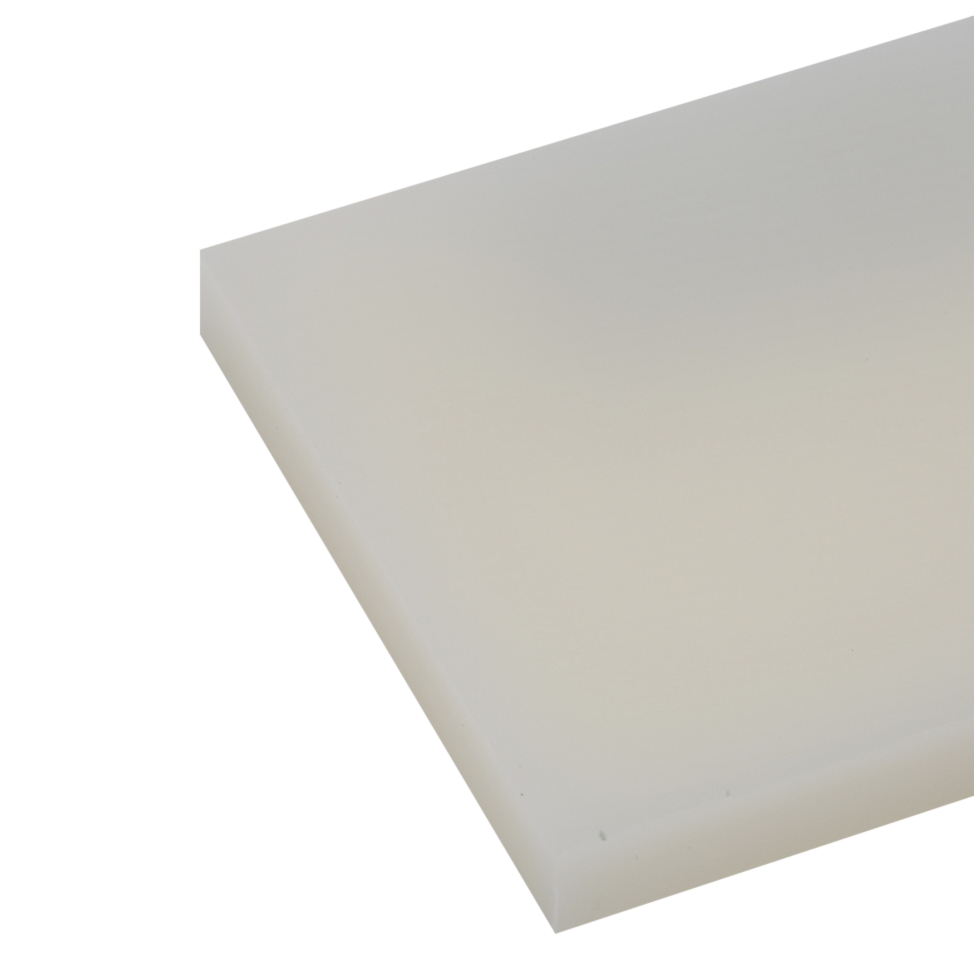

PE300 (HDPE) Extruded Natural Sheet | Plastock
PE300 (HDPE) Extruded Natural Sheet | Plastock
Polyethylene Sheet | Plastock

PE300 (HDPE) Extruded Natural Sheet

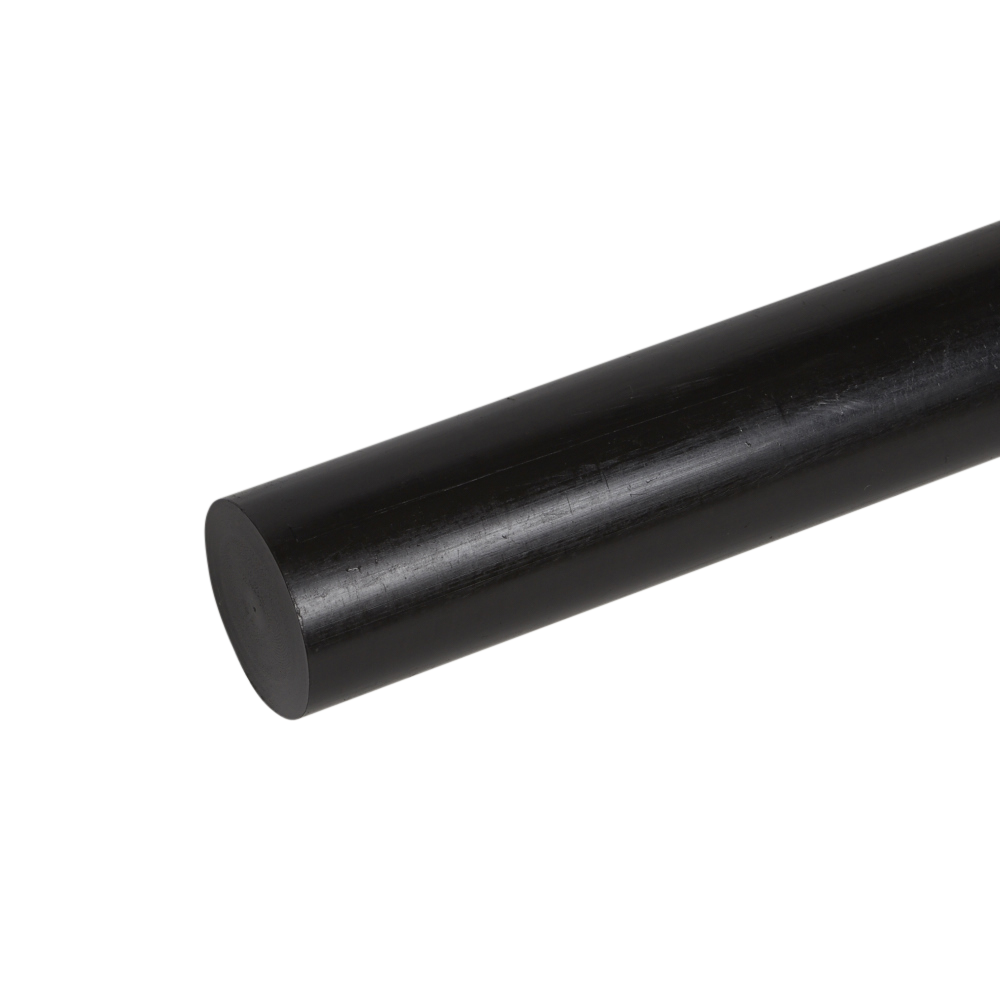

PE300 (HDPE) Extruded Black Rod | Plastock
PE300 (HDPE) Extruded Black Rod | Plastock

PE300 (HDPE) Extruded Black Rod

PE300 (HDPE) Extruded Natural Rod | Plastock
PE300 (HDPE) Extruded Natural Rod | Plastock

PE300 (HDPE) Extruded Natural Rod

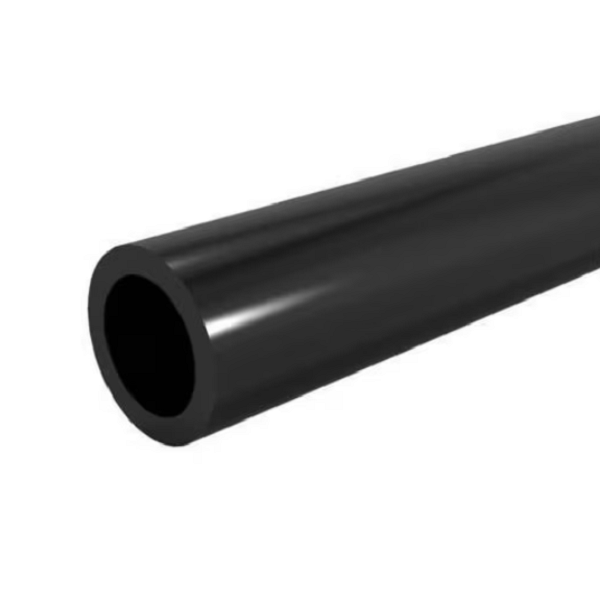

PE300 (HDPE) Extruded Black Hollow Rod | Plastock
PE300 (HDPE) Extruded Black Hollow Rod | Plastock

PE300 (HDPE) Extruded Black Hollow Rod

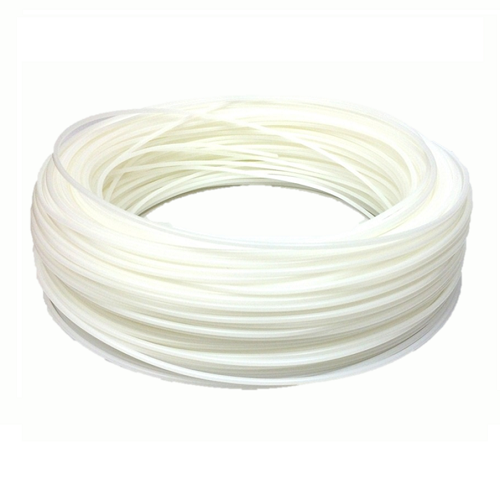

HDPE Welding Rod Natural | Plastock
HDPE Welding Rod Natural | Plastock

HDPE Welding Rod Natural

PE300 (HDPE) Extruded Black Sheet | Plastock
PE300 (HDPE) Extruded Black Sheet | Plastock
Polyethylene Sheet | Plastock

PE300 (HDPE) Extruded Black Sheet

PE300 (HDPE) Extruded Natural Sheet | Plastock
PE300 (HDPE) Extruded Natural Sheet | Plastock
Polyethylene Sheet | Plastock

PE300 (HDPE) Extruded Natural Sheet

PE300 (HDPE) Extruded Black Rod | Plastock
PE300 (HDPE) Extruded Black Rod | Plastock

PE300 (HDPE) Extruded Black Rod

PE300 (HDPE) Extruded Natural Rod | Plastock
PE300 (HDPE) Extruded Natural Rod | Plastock

PE300 (HDPE) Extruded Natural Rod

PE300 (HDPE) Extruded Black Hollow Rod | Plastock
PE300 (HDPE) Extruded Black Hollow Rod | Plastock

PE300 (HDPE) Extruded Black Hollow Rod

HDPE Welding Rod Natural | Plastock
HDPE Welding Rod Natural | Plastock

HDPE Welding Rod Natural

Technical Details

 TEST METHODVALUEVALUE (IMPERIAL)
PHYSICAL PROPERTIES
DensityISO 11830.95 g/cm³0.034 lb/in³
Water Absorption (24h)ISO 62< 0.01%< 0.01%
Water Absorption (Saturation)ISO 62< 0.01%< 0.01%
MECHANICAL PROPERTIES
Tensile Strength at YieldISO 52722 MPa3,200 psi
Tensile Modulus of ElasticityISO 527800 MPa116 ksi
Elongation at YieldISO 52710%10%
Elongation at BreakISO 527> 300%> 300%
Flexural StrengthISO 17825 MPa3,600 psi
Flexural ModulusISO 1781,000 MPa145 ksi
Charpy Impact (Notched)ISO 17912 kJ/m²5.7 ft-lb/in²
Rockwell HardnessISO 2039-2R 45R 45
THERMAL PROPERTIES
Melting TemperatureDSC130°C266°F
Heat Deflection Temp (1.8 MPa)ISO 7545°C113°F
Max. Service Temp (Long Term)80°C176°F
Min. Service Temp-50°C-58°F
Thermal expansion (CLTE) DIN 53752180 x 10⁻⁶/K10 x 10⁻⁵ in/in/°F
Thermal ConductivityDIN 526120.38 W/(m·K)2.6 BTU·in/(hr·ft²·°F)
Flammability RatingUL 94HBHB
ELECTRICAL PROPERTIES
Dielectric StrengthIEC 6024345 kV/mm
Volume ResistivityIEC 60093> 10¹⁴ Ω·cm
Surface ResistivityIEC 60093> 10¹³ Ω
Dielectric Constant (1 MHz)IEC 602502.3
Dissipation Factor (1 MHz)IEC 602500.0002

These values are typical average values and should be used for material selection and design guidance only.

Technical Details

 TEST METHODVALUE
PHYSICAL PROPERTIES
DensityISO 11830.95 g/cm³
Water Absorption (24h)ISO 62< 0.01%
Water Absorption (Saturation)ISO 62< 0.01%
MECHANICAL PROPERTIES
Tensile Strength at YieldISO 52722 MPa
Tensile Modulus of ElasticityISO 527800 MPa
Elongation at YieldISO 52710%
Elongation at BreakISO 527> 300%
Flexural StrengthISO 17825 MPa
Flexural ModulusISO 1781,000 MPa
Charpy Impact (Notched)ISO 17912 kJ/m²
Rockwell HardnessISO 2039-2R 45
THERMAL PROPERTIES
Melting TemperatureDSC130°C
Heat Deflection Temp (1.8 MPa)ISO 7545°C
Max. Service Temp (Long Term)80°C
Min. Service Temp-50°C
Thermal expansion (CLTE) DIN 53752180 x 10⁻⁶/K
Thermal ConductivityDIN 526120.38 W/(m·K)
Flammability RatingUL 94HB
ELECTRICAL PROPERTIES
Dielectric StrengthIEC 6024345 kV/mm
Volume ResistivityIEC 60093> 10¹⁴ Ω·cm
Surface ResistivityIEC 60093> 10¹³ Ω
Dielectric Constant (1 MHz)IEC 602502.3
Dissipation Factor (1 MHz)IEC 602500.0002

These values are typical average values and should be used for material selection and design guidance only.

CHEMICAL RESISTANCE

 CATEGORYREPRESENTATIVE SUBSTANCERATINGNOTES
Acids (Weak)Acetic Acid (10%)AStable against most dilute organic acids.
Acids (Strong)Sulfuric Acid (98%)BSurface discolouration/oxidation over time.
AlcoholsEthanolAHighly resistant to most common alcohols.
Alkalis (Bases)Sodium HydroxideAExcellent resistance to strong caustic solutions.
Aromatic HydrocarbonsBenzene, TolueneCSignificant swelling and loss of mechanical strength.
Chlorinated SolventsChloroformCHigh risk of environmental stress cracking.
FuelsPetrol, DieselBLimited duration, potential for slight permeation.
KetonesAcetone, Methyl Ethyl Ketone (MEK)AGenerally very good resistance to ketones.
Oxidizing AgentsNitric Acid (Conc.)CSevere degradation of the polymer chain.
Water / SteamWater / SteamAExcellent, though not suitable for high-pressure steam.

RATING SCALE:
A (Excellent): Little to no effect.
B (Good/Fair): Minor swelling or slight changes in properties; acceptable for short-term exposure.
C (Poor): Severe degradation or stress cracking. Not recommended.

CHEMICAL RESISTANCE

 CATEGORYEXAMPLERATING
Acids (Weak)Acetic Acid (10%)A
Acids (Strong)Sulfuric Acid (98%)B
AlcoholsEthanolA
Alkalis (Bases)Sodium HydroxideA
Aromatic HydrocarbonsTolueneC
Chlorinated SolventsChloroformC
FuelsPetrol, DieselB
KetonesAcetoneA
Oxidizing AgentsNitric Acid (Conc.)C
Water / SteamWater / SteamA

RATING SCALE:
A (Excellent): Little to no effect.
B (Good/Fair): Minor swelling or slight changes in properties; acceptable for short-term exposure.
C (Poor): Severe degradation or stress cracking. Not recommended.
