Polypropylene Copolymer

Polypropylene Copolymer

Polypropylene Copolymer (PPC) is a versatile, lightweight thermoplastic created by polymerizing propylene with another monomer (usually ethylene). By incorporating ethylene monomers into the polymer chain, PPC achieves enhanced impact resistance and flexibility compared to its counterpart, Polypropylene Homopolymer (PPH).

PPC offers a balanced profile of physical and chemical characteristics and is particularly favoured in engineering applications where durability at lower temperatures and resistance to physical stress are paramount.

Key Properties

Mechanical & Physical

  • High Impact Strength
    Superior resistance to shocks and drops, especially in cold environments.
  • Chemical Inertness
    Excellent resistance to most acids, alkalis, and organic solvents.
  • Stress Crack Resistance
    Enhanced durability under constant mechanical load compared to other polyolefins.
  • Low Density
    One of the lightest engineering plastics, aiding in weight-reduction strategies.

Chemical & Thermal

  • Flexibility
    Lower stiffness than homopolymers, allowing for "living hinges" and snap-fit joints.
  • Moisture Resistance
    Near-zero water absorption, ensuring dimensional stability in humid conditions.
  • Thermal Insulation
    Good thermal properties for both hot and cold fluid handling.
  • Food Contact Compliance
    Often manufactured to meet FDA and EU standards for food safety.

COMMON APPLICATIONS

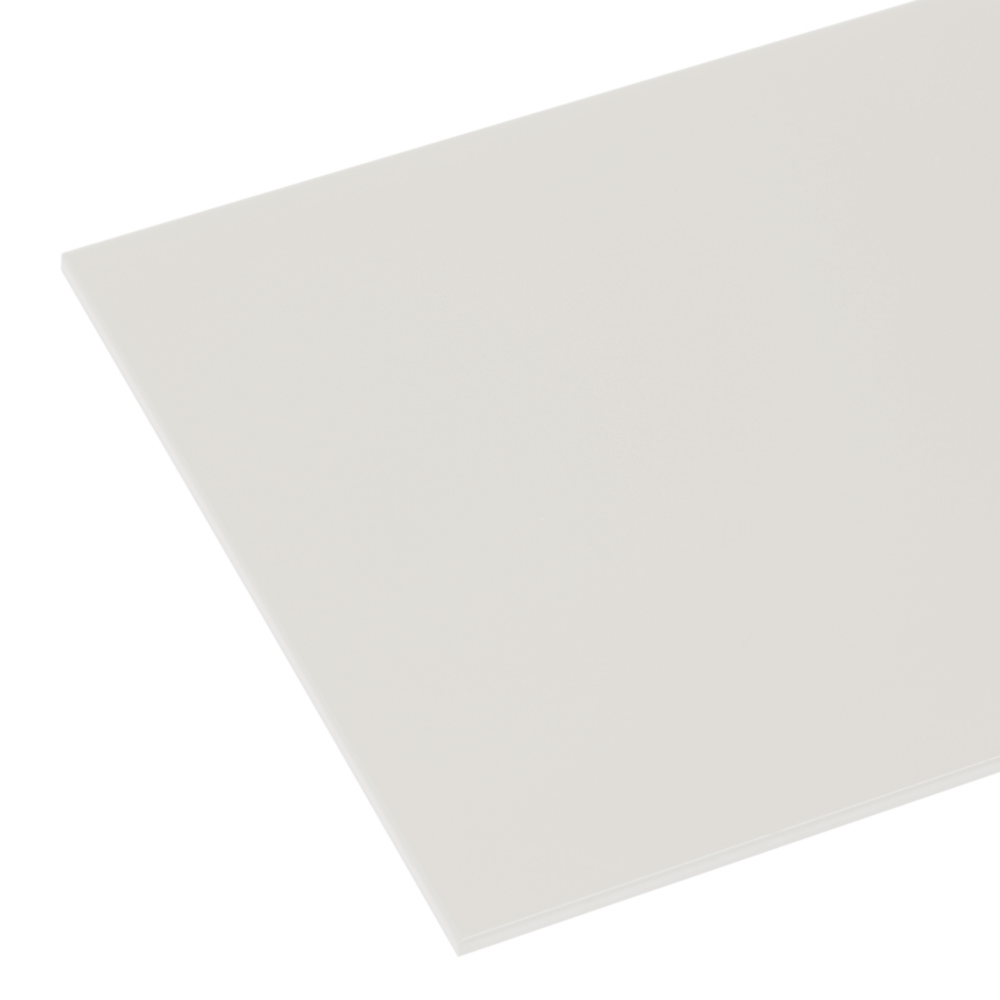

PPC Extruded Natural Sheet | Plastock
PPC Extruded Natural Sheet | Plastock

PPC Natural Sheet

PPC Extruded Black Sheet | Plastock
PPC Extruded Black Sheet | Plastock

PPC Black Sheet

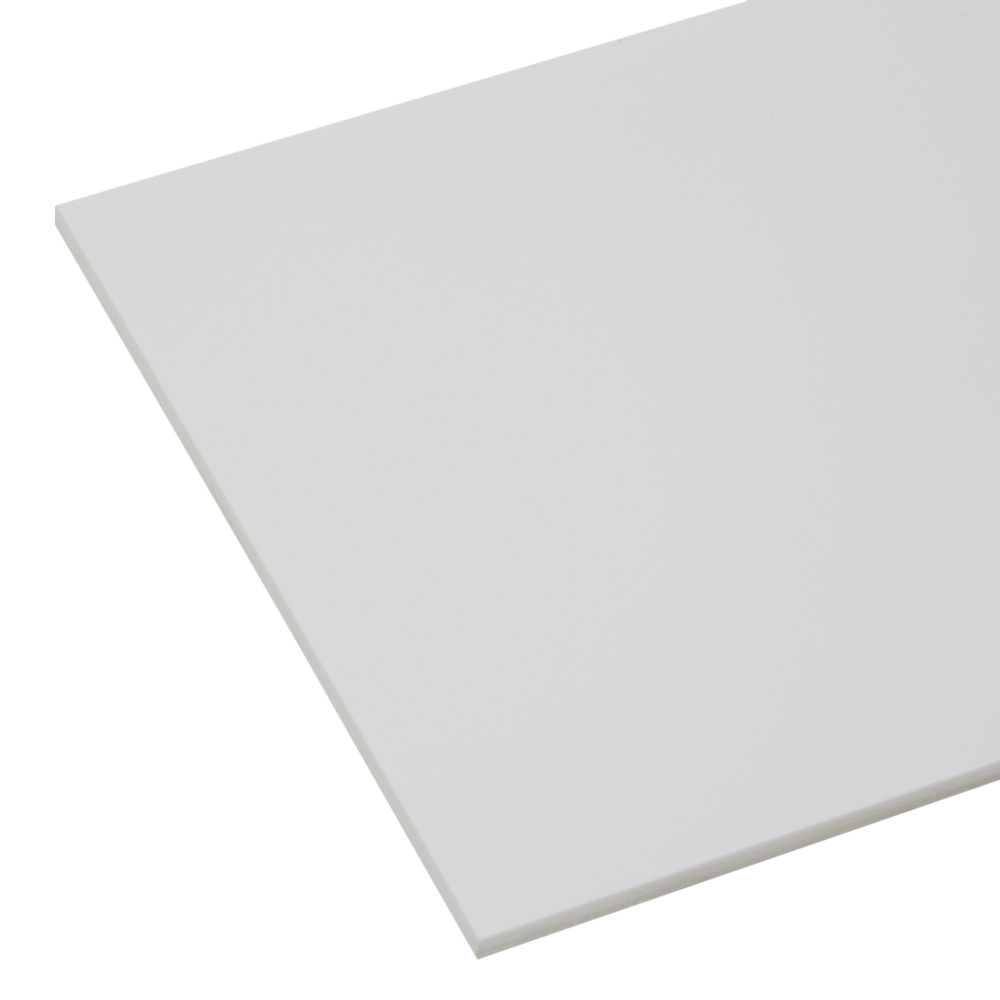

PPC Extruded White Sheet | Plastock
PPC Extruded White Sheet | Plastock

PPC White Sheet

PPC Extruded Beige Sheet | Plastock
PPC Extruded Beige Sheet | Plastock

PPC Beige Sheet

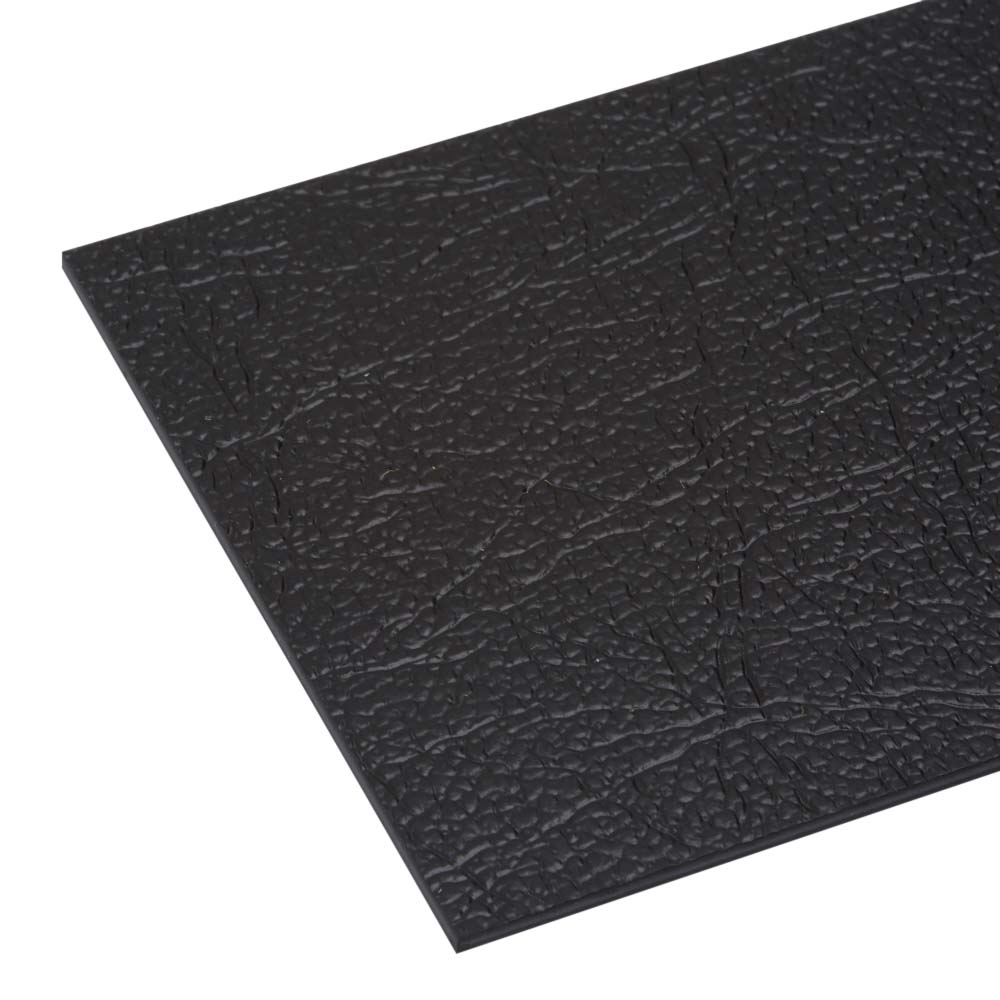

PPC Leather Grain Black Sheet | Plastock
PPC Leather Grain Black Sheet | Plastock

PPC Leather Grain Black Sheet

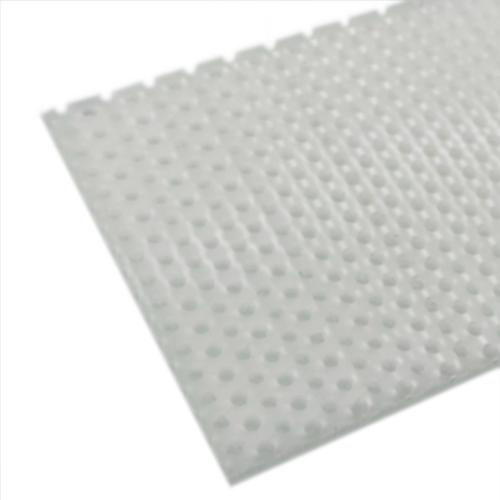

PPC Perforated Natural Sheet | Plastock
PPC Perforated Natural Sheet | Plastock

PPC Perforated Natural Sheet (3mm Thick)

PPC Extruded Natural Sheet | Plastock
PPC Extruded Natural Sheet | Plastock

PPC Natural Sheet

PPC Extruded Black Sheet | Plastock
PPC Extruded Black Sheet | Plastock

PPC Black Sheet

PPC Extruded Beige Sheet | Plastock
PPC Extruded Beige Sheet | Plastock

PPC Beige Sheet

PPC Extruded White Sheet | Plastock
PPC Extruded White Sheet | Plastock

PPC White Sheet

PPC Leather Grain Black Sheet | Plastock
PPC Leather Grain Black Sheet | Plastock

PPC Leather Grain Black Sheet

PPC Perforated Natural Sheet | Plastock
PPC Perforated Natural Sheet | Plastock

PPC Perforated Natural Sheet (3mm Thick)

Technical Details

 TEST METHODVALUEVALUE (IMPERIAL)
PHYSICAL PROPERTIES
DensityISO 11830.9 g/cm³0.032 lb/in³
Water Absorption (24h)ISO 620.01%0.01%
Water Absorption (Saturation)ISO 620.03%0.03%
MECHANICAL PROPERTIES
Tensile Strength at YieldISO 52725 MPa3,625 psi
Tensile Modulus of ElasticityISO 5271,100 MPa160 ksi
Elongation at YieldISO 52712%12%
Elongation at BreakISO 527>400%>400%
Flexural StrengthISO 17835 MPa5,075 psi
Flexural ModulusISO 1781,200 MPa174 ksi
Charpy Impact (Notched)ISO 17912 kJ/m²5.7 ft-lb/in²
Rockwell HardnessISO 2039-2R 85R 85
THERMAL PROPERTIES
Melting TemperatureDSC150°C302°F
Heat Deflection Temp (1.8 MPa)ISO 7550°C122°F
Max. Service Temp (Long Term)100°C212°F
Min. Service Temp-20°C-4°F
Thermal expansion (CLTE) ISO 11359150 x 10⁻⁶/K8.3 x 10⁻5 in/in/°F
Thermal Conductivity0.22 W/(m·K)1.53 BTU·in/(hr·ft²·°F)
Flammability RatingUL 94HBHB
ELECTRICAL PROPERTIES
Dielectric StrengthIEC 6024330 kV/mm
Volume ResistivityIEC 6009310¹⁶  Ω·cm
Surface ResistivityIEC 6009310¹⁴ Ω
Dielectric Constant (1 MHz)IEC 602502.3
Dissipation Factor (1 MHz)IEC 602500.0005

These values are typical average values and should be used for material selection and design guidance only.

Technical Details

 TEST METHODVALUE
PHYSICAL PROPERTIES
DensityISO 11830.90 g/cm³
Water Absorption (24h)ISO 620.01%
Water Absorption (Saturation)ISO 620.03%
MECHANICAL PROPERTIES
Tensile Strength at YieldISO 52725 MPa
Tensile Modulus of ElasticityISO 5271,100 MPa
Elongation at YieldISO 52712%
Elongation at BreakISO 527>400%
Flexural StrengthISO 17835 MPa
Flexural ModulusISO 1781,200 MPa
Charpy Impact (Notched)ISO 17912 kJ/m²
Rockwell HardnessISO 2039-2R85
THERMAL PROPERTIES
Melting TemperatureDSC150°C
Heat Deflection Temp (1.8 MPa)ISO 7550°C
Max. Service Temp (Long Term)100°C
Min. Service Temp-20°C
Thermal expansion (CLTE) ISO 11359150 x 10⁻⁶/K
Thermal Conductivity0.22 W/(m·K)
Flammability RatingUL 94HB
ELECTRICAL PROPERTIES
Dielectric StrengthIEC 6024330 kV/mm
Volume ResistivityIEC 6009310¹⁶ Ω·cm
Surface ResistivityIEC 6009310¹⁴ Ω
Dielectric Constant (1 MHz)IEC 602502.3
Dissipation Factor (1 MHz)IEC 602500.0005

These values are typical average values and should be used for material selection and design guidance only.

CHEMICAL RESISTANCE

 CATEGORYREPRESENTATIVE SUBSTANCERATINGNOTES
Acids (Weak)Acetic Acid (10%)AVery stable at ambient temperatures.
Acids (Strong)Sulphuric Acid (98%)B/CRisk of oxidation at high concentrations/heat.
AlcoholsEthanol / IsopropanolAHighly resistant; suitable for sanitisation.
Alkalis (Bases)Sodium HydroxideAExcellent resistance to caustic solutions.
Aromatic HydrocarbonsBenzene / TolueneCSignificant swelling and softening occurs.
Chlorinated SolventsChloroformCMaterial degradation and loss of strength.
FuelsPetrol, DieselBOccasional exposure is tolerable, constant immersion causes swelling.
KetonesAcetoneAGenerally very resistant compared to other plastics.
Oxidizing AgentsHydrogen PeroxideBMay cause surface embrittlement over time.
Water / SteamWater / SteamAExcellent, although long-term steam may cause slight deformation.

RATING SCALE:
A (Excellent): Little to no effect.
B (Good/Fair): Minor swelling or slight changes in properties; acceptable for short-term exposure.
C (Poor): Severe degradation or stress cracking. Not recommended.

CHEMICAL RESISTANCE

 CATEGORYEXAMPLERATING
Acids (Weak)Acetic Acid (10%)A
Acids (Strong)Sulphuric Acid (98%)B/C
AlcoholsEthanol / IsopropanolA
Alkalis (Bases)Sodium HydroxideA
Aromatic HydrocarbonsBenzene / TolueneC
Chlorinated SolventsChloroformC
FuelsPetrol, DieselB
KetonesAcetoneA
Oxidizing AgentsHydrogen PeroxideB
Water / SteamWater / SteamA

RATING SCALE:
A (Excellent): Little to no effect.
B (Good/Fair): Minor swelling or slight changes in properties; acceptable for short-term exposure.
C (Poor): Severe degradation or stress cracking. Not recommended.
