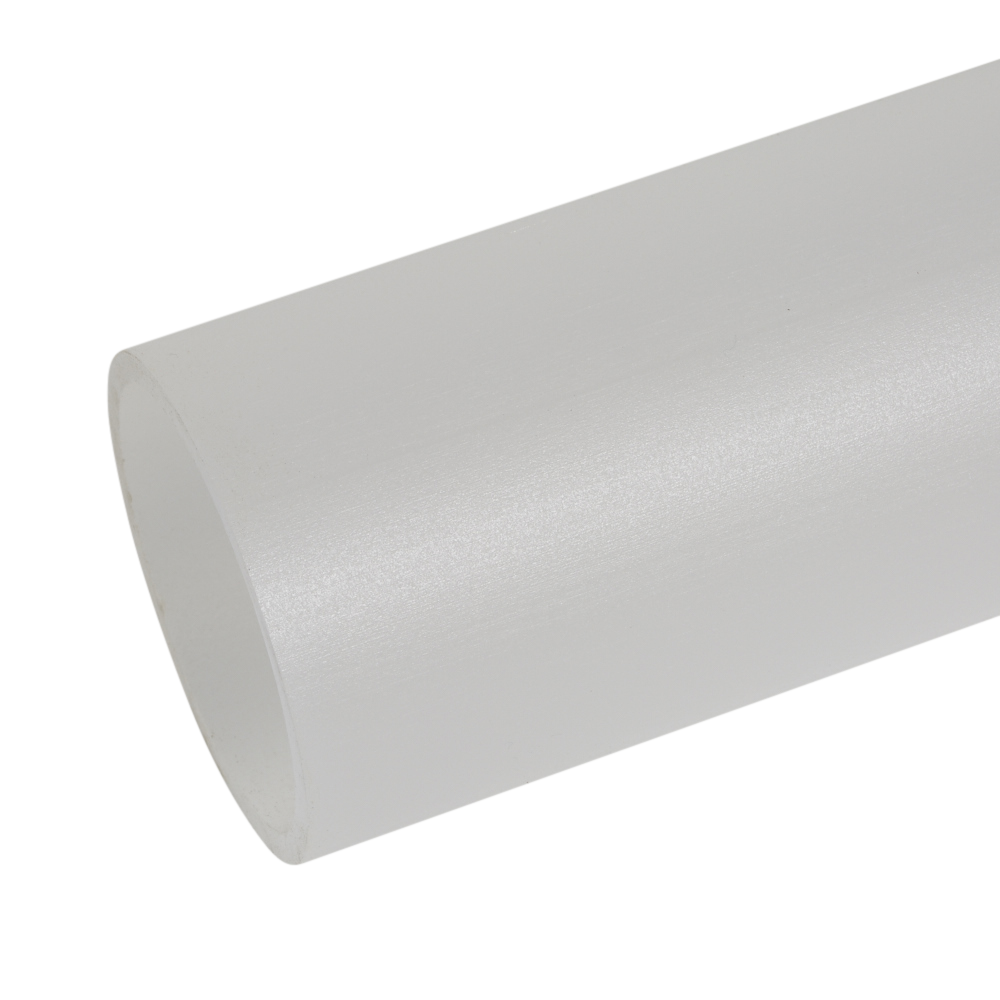

Acrylic Extruded Satin Tube

PlastockSKU: TR03F.I020.030I.SAT

Outside Diameter (mm): 20
Wall Thickness (mm): 3
Length (mm): 2000
Sale price£37.84

All prices Ex VAT. Shipping calculated at checkout

Estimated Delivery 1-5 Working Days


Acrylic Extruded Satin Tube is a high quality product, that has a frosted surface on both the interior and exterior faces. The light transmission of this product is 70% ensuring a consistent light level without spotting can be achieved with the correct source of illumination. Typical products characteristics include good resistance to mechanical stress, hard surface and good thermal stability. The long term service temperature range of Extruded Acrylic is from -20°C to 60°C.

Typical fields of application for Extruded Acrylic include set design for film and tv, retail display and lighting design. Extruded Acrylic is a material well suited to fabrication, gluing and CNC turning. Similar materials available from Plastock include Acrylic Extruded Clear Tube and Acrylic Extruded Opal Tube.

If you have a requirement for machined or finished Extruded components please ask the Plastock team for more information.

Colour Satin
Density (g/cm³) 1.19
Water absorption (%) 0.21
Elongation at break (%) 3
CLTE (10⁻⁶K⁻¹) 80
Thermal conductivity (W/(m*K) 0.19
Service temp long term min (°C) -20
Service temp long term max (°C) 60
Dielectric constant 2.9
Dielectric strength (kV/mm) 35
Material type Extruded
