Unplasticised Polyvinyl Chloride

Unplasticised Polyvinyl Chloride

Unplasticised Polyvinyl Chloride, commonly known as uPVC or PVC-U, is a robust, chemically resistant, and cost-effective thermoplastic. Unlike standard PVC, uPVC contains no phthalates or plasticisers, resulting in a rigid material with high mechanical strength and excellent longevity.

Its inherent resistance to corrosion and UV degradation makes it a global standard for both industrial and domestic infrastructure.

Key Properties

Mechanical & Physical

  • High Rigidity
    Excellent structural integrity and dimensional stability due to the absence of plasticisers.
  • Cost Effective
    Provides a high performance-to-cost ratio compared to materials like aluminium or copper.
  • Corrosion Resistance
    Unlike metals, uPVC does not rust or pit, even in saline or damp environments.
  • Thermal Insulation
    Low thermal conductivity helps maintain temperatures and reduce energy loss.

Chemical & Thermal

  • Self-Extinguishing
    Inherently flame retardan, it stops burning once the ignition source is removed.
  • UV Stability
    Specifically formulated grades offer high resistance to sunlight, preventing brittleness.
  • Low Maintenance
    Requires no painting or sealing, easily cleaned with water and mild detergent.
  • Chemical Resistance
    Highly inert and resistant to most acids, alkalis, and inorganic solutions.

COMMON APPLICATIONS

UPVC Extruded White Rod | Plastock
UPVC Extruded White Rod | Plastock

PVC White Rod (PVC-U)

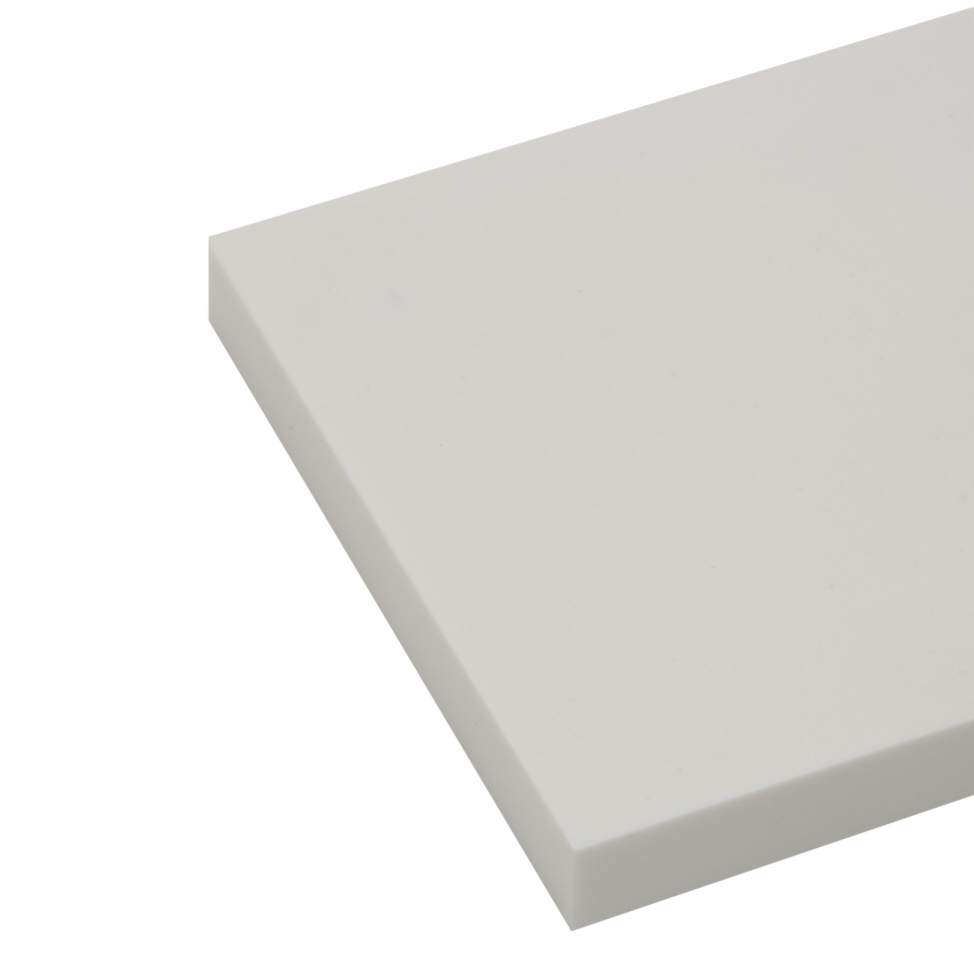

UPVC Extruded White Sheet | Plastock
UPVC Extruded White Sheet | Plastock
PVC Sheet | Plastock

PVC White Sheet (PVC-U)

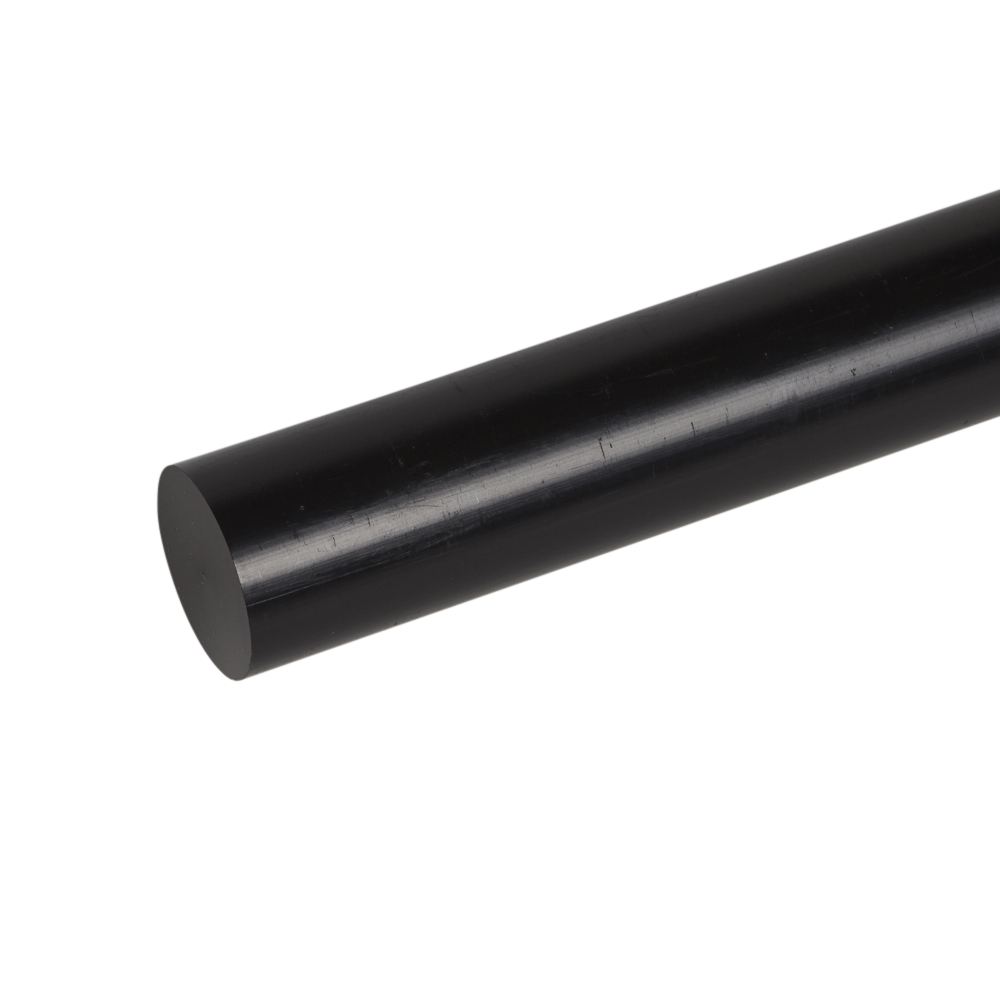

UPVC Extruded Black Rod | Plastock
UPVC Extruded Black Rod | Plastock

PVC Black Rod (PVC-U)

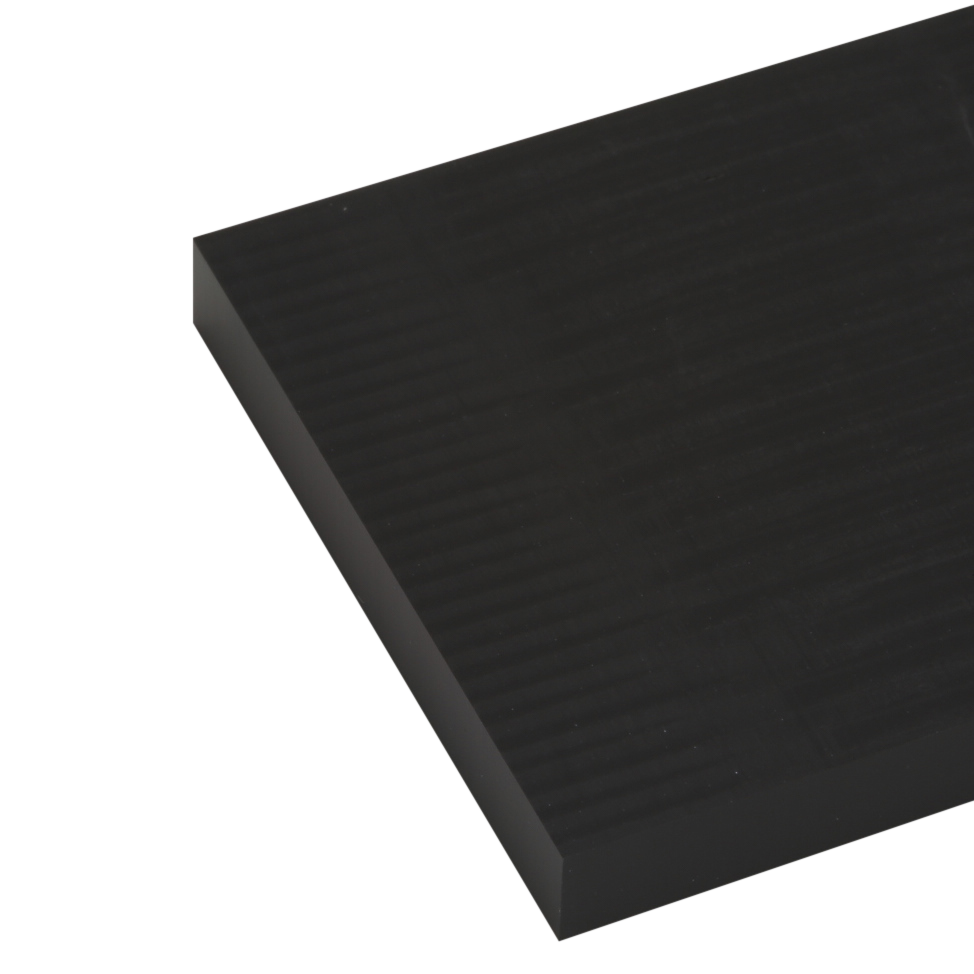

UPVC Extruded Black Sheet | Plastock
UPVC Extruded Black Sheet | Plastock
PVC Sheet | Plastock

PVC Black Sheet (PVC-U)

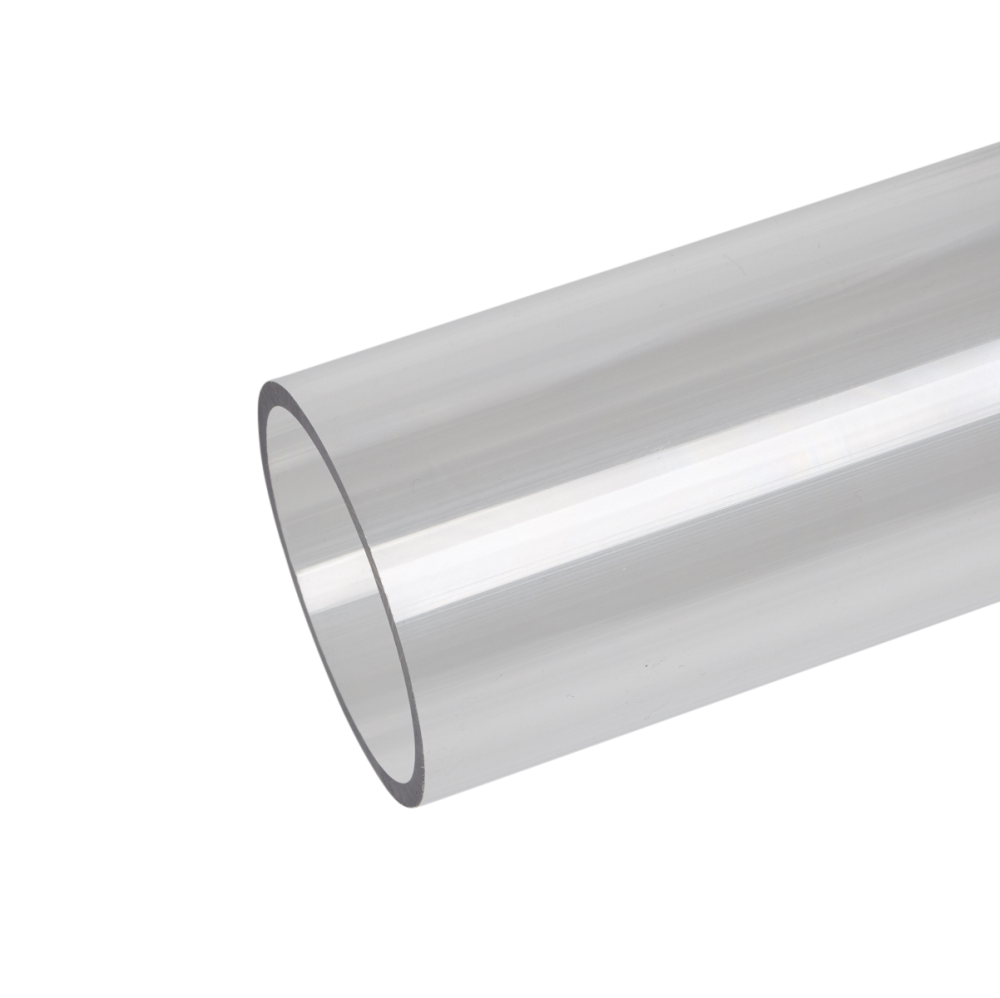

uPVC Clear Tube | Plastock
uPVC Clear Tube | Plastock

PVC Clear Rigid Tube (PVC-U)

UPVC Grey Hollow Rod | Plastock
UPVC Grey Hollow Rod | Plastock

PVC Grey Hollow Rod (PVC-U)

UPVC Extruded White Rod | Plastock
UPVC Extruded White Rod | Plastock

PVC White Rod (PVC-U)

UPVC Extruded White Sheet | Plastock
UPVC Extruded White Sheet | Plastock
PVC Sheet | Plastock

PVC White Sheet (PVC-U)

UPVC Extruded Black Rod | Plastock
UPVC Extruded Black Rod | Plastock

PVC Black Rod (PVC-U)

UPVC Extruded Black Sheet | Plastock
UPVC Extruded Black Sheet | Plastock
PVC Sheet | Plastock

PVC Black Sheet (PVC-U)

uPVC Clear Tube | Plastock
uPVC Clear Tube | Plastock

PVC Clear Rigid Tube (PVC-U)

UPVC Grey Hollow Rod | Plastock
UPVC Grey Hollow Rod | Plastock

PVC Grey Hollow Rod (PVC-U)

Technical Details

 TEST METHODVALUEVALUE (IMPERIAL)
PHYSICAL PROPERTIES
DensityISO 11831.42 g/cm³0.051 lb/in³
Water Absorption (24h)ISO 620.04%0.04%
Water Absorption (Saturation)ISO 620.10%0.10%
MECHANICAL PROPERTIES
Tensile Strength at YieldISO 52755 MPa8,000 psi
Tensile Modulus of ElasticityISO 5273,000 MPa435 ksi
Elongation at YieldISO 5273%3%
Elongation at BreakISO 52720%20%
Flexural StrengthISO 17890 MPa13,000 psi
Flexural ModulusISO 1782,800 MPa406 ksi
Charpy Impact (Notched)ISO 1794 kJ/m²1.9 ft-lb/in²
Rockwell HardnessISO 2039-2R 110R 110
THERMAL PROPERTIES
Melting TemperatureDSC160°C320°F
Heat Deflection Temp (1.8 MPa)ISO 7570°C158°F
Max. Service Temp (Long Term)60°C140°F
Min. Service Temp0°C32°F
Thermal expansion (CLTE) ISO 1135980 x 10⁻⁶/K84.4x 10⁻⁵ in/in/°F
Thermal ConductivityDIN 526120.16 W/(m·K)1.1 BTU·in/(hr·ft²·°F)
Flammability RatingUL 94V-0V-0
ELECTRICAL PROPERTIES
Dielectric StrengthIEC 6024320 kV/mm
Volume ResistivityIEC 6009310¹⁴ Ω·cm
Surface ResistivityIEC 6009310¹³ Ω
Dielectric Constant (1 MHz)IEC 602503.0
Dissipation Factor (1 MHz)IEC 602500.015

These values are typical average values and should be used for material selection and design guidance only.

Technical Details

 TEST METHODVALUE
PHYSICAL PROPERTIES
DensityISO 11831.42 g/cm³
Water Absorption (24h)ISO 620.04%
Water Absorption (Saturation)ISO 620.10%
MECHANICAL PROPERTIES
Tensile Strength at YieldISO 52755 MPa
Tensile Modulus of ElasticityISO 5273,000 MPa
Elongation at YieldISO 5273%
Elongation at BreakISO 52720%
Flexural StrengthISO 17890 MPa
Flexural ModulusISO 1782,800 MPa
Charpy Impact (Notched)ISO 1794 kJ/m²
Rockwell HardnessISO 2039-2R 110
THERMAL PROPERTIES
Melting TemperatureDSC160°C
Heat Deflection Temp (1.8 MPa)ISO 7570°C
Max. Service Temp (Long Term)60°C
Min. Service Temp0°C
Thermal expansion (CLTE) ISO 1135980 x 10⁻⁶/K
Thermal ConductivityDIN 526120.16 W/(m·K)
Flammability RatingUL 94V-0
ELECTRICAL PROPERTIES
Dielectric StrengthIEC 6024320 kV/mm
Volume ResistivityIEC 6009310¹⁴ Ω·cm
Surface ResistivityIEC 6009310¹³ Ω
Dielectric Constant (1 MHz)IEC 602503.0
Dissipation Factor (1 MHz)IEC 602500.015

These values are typical average values and should be used for material selection and design guidance only.

CHEMICAL RESISTANCE

 CATEGORYREPRESENTATIVE SUBSTANCERATINGNOTES
Acids (Weak)Acetic Acid (10%)AStable against most diluted organic acids.
Acids (Strong)Hydrochloric Acid (35%)AExceptional resistance to mineral acids.
AlcoholsEthanol, IsopropanolBGenerally resistant but can cause slight swelling.
Alkalis (Bases)Sodium HydroxideAExcellent resistance to caustic solutions.
Aromatic HydrocarbonsBenzene, TolueneCCauses severe softening and swelling.
Chlorinated SolventsMethylene ChlorideCRapidly dissolves or severely degrades uPVC.
FuelsPetrol, DieselBOccasional exposure is OK, not for long-term storage.
KetonesAcetone, Methyl Ethyl Ketone (MEK)CActs as a solvent, causes immediate failure.
Oxidizing AgentsHydrogen PeroxideAHigh stability in oxidising environments.
Water / SteamWater / SteamAExcellent for water, but steam causes heat distortion.

RATING SCALE:
A (Excellent): Little to no effect.
B (Good/Fair): Minor swelling or slight changes in properties; acceptable for short-term exposure.
C (Poor): Severe degradation or stress cracking. Not recommended.

CHEMICAL RESISTANCE

 CATEGORYEXAMPLERATING
Acids (Weak)Acetic Acid (10%)A
Acids (Strong)Hydrochloric Acid (35%)A
AlcoholsEthanolB
Alkalis (Bases)Sodium HydroxideA
Aromatic HydrocarbonsBenzene / TolueneC
Chlorinated SolventsMethylene ChlorideC
FuelsPetrol, DieselB
KetonesAcetoneC
Oxidizing AgentsHydrogen PeroxideA
Water / SteamWater / SteamA

RATING SCALE:
A (Excellent): Little to no effect.
B (Good/Fair): Minor swelling or slight changes in properties; acceptable for short-term exposure.
C (Poor): Severe degradation or stress cracking. Not recommended.
