Description

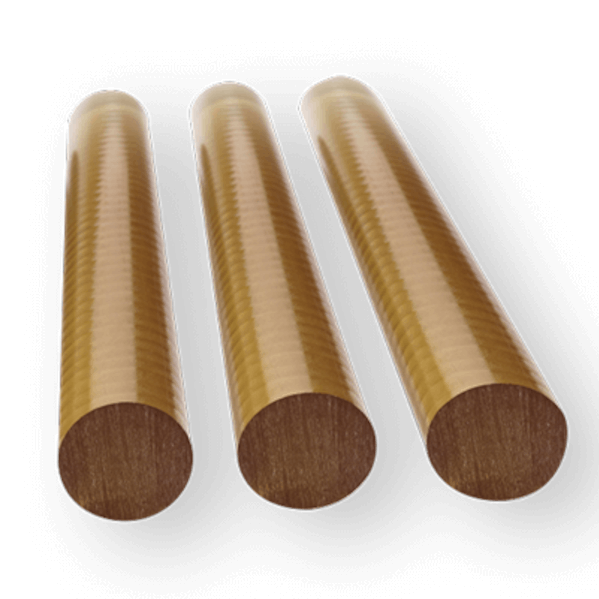

PSU Extruded Natural Rod is a transparent yellow, amorphous thermoplastic with product characteristics including high rigidity even at high temperatures, good resistance to high energy radiation and outstanding hydrolysis-resistance. The long term service temperature range of PSU Rod is from -50°C to 160°C and has a short term maximum service temperature of 180°C. The physical properties remain virtually unchanged in a broad temperature and electrical frequency range.

Typical fields of application for PSU Rod include electrical and electronic industries, medical technology and household appliance industries. PSU Rod is a material well suited to billeting, precision grinding and CNC turning. Similar materials available from Plastock include PEI Extruded Natural Rod and PEEK 450G Extruded Natural Rod.

If you have a requirement for machined or finished PSU components please ask the Plastock team for more information.

Tech Specs

Colour	Natural
Density (g/cm³)	1.24
Water absorption (%)	0.2
Yield stress (MPa)	80
Elongation at break (%)	15
Notched impact strength (kJ/m²)	6
Ball indentation hardness (MPa)	155
Shore hardness (scale D)	85
Tensile modulus of elasticity (MPa)	2600
Thermal conductivity (W/(m*K)	0.26
Thermal capacity (kJ/(kg*K)	1.1
CLTE (10⁻⁶K⁻¹)	55
Service temp long term min (°C)	-50
Service temp long term max (°C)	160
Service temp short term max (°C)	180
Heat deflection temperature (°C)	175
Dielectric constant	3.2
Dielectric strength (kV/mm)	30
Volume resistivity (Ω*cm)	10¹⁵
Surface resistivity (Ω)	10¹⁴
Comparative tracking index	125
Flammability 3mm	HB
Flammability 6mm	VO
Material type	Extruded
