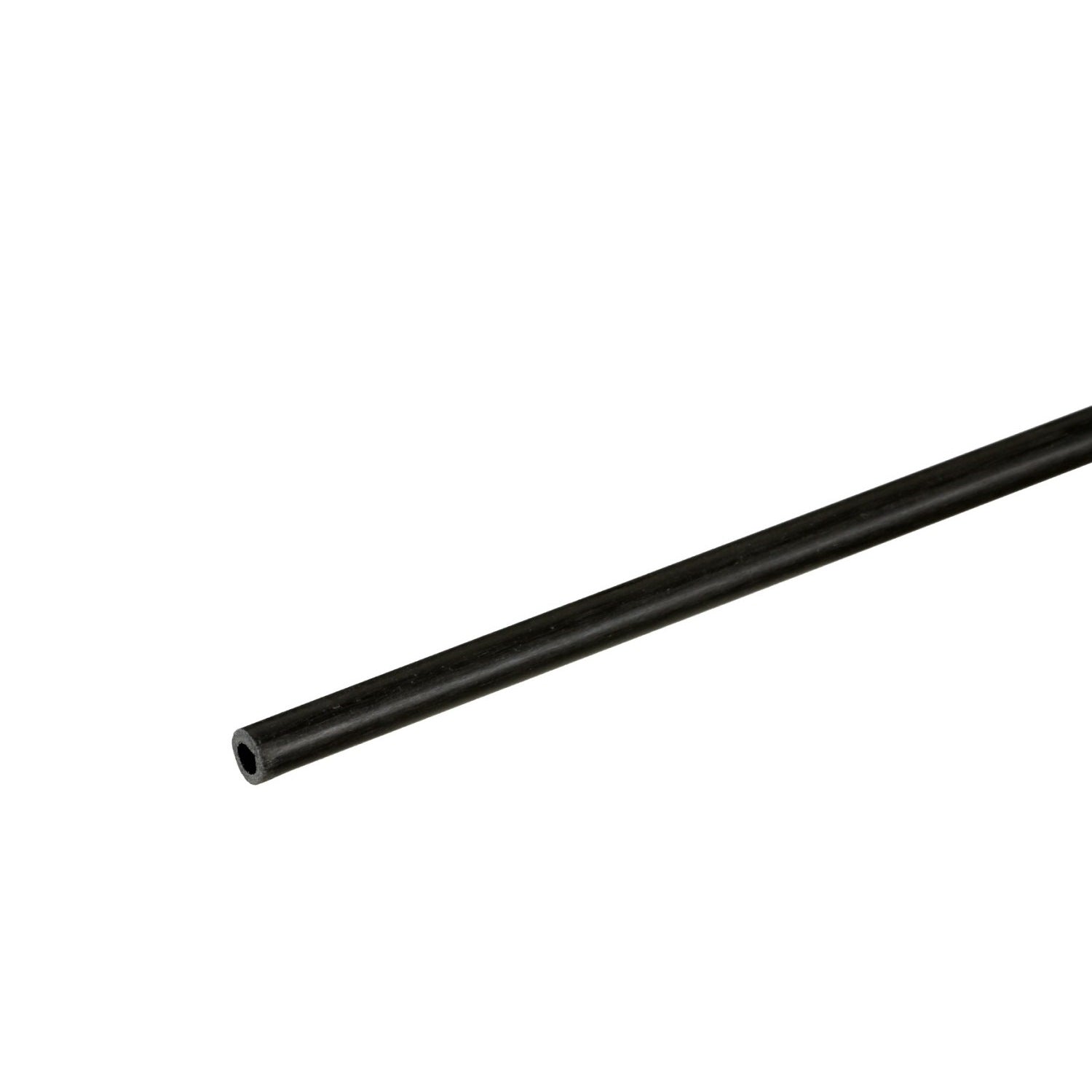

Pultruded Carbon Fibre Tube

PlastockSKU: TR80P.E002.005.BLK

Outside Diameter (mm): 2
Wall Thickness (mm): 0.5
Length (mm): 1000
Price:
Sale priceÂŁ4.90

All prices Ex VAT. Shipping calculated at checkout

Tolerance: OD 0.1mm ID 0.1mm
Estimated Delivery 1-5 Working Days

Details

This high performance pultruded carbon fibre tube is manufactured to tight tolerances using high strength carbon fibre and an epoxy or vinyl ester resin matrix. Pultruded tubes are the most commonly used type of carbon fibre tube. They are manufactured by pulling continuous strands of carbon fibre through resin and a former before curing the resin all in one process. Pultruded tubes have 100% longitudinal fibre orientation which gives them excellent strength along their length but makes them vulnerable to crushing forces. For applications where crushing or non-uniform forces are experienced, roll wrapped carbon fibre tubes should be considered as an alternative.

Typical applications include radio controlled models, electronics, UAVs, robotics, engineering and automation. If you have a requirement for machined or finished carbon fibre components please ask the Plastock team for more information.

Colour Black
Finish UD (Matt)
Construction Pultrusion
Resin Matrix (OD 2-4mm) Vinyl Ester
Resin Matrix (OD 5-12mm) Epoxy
Fibre Orientation Unidirectional
Tg Onset (DMA) (°C) 80
