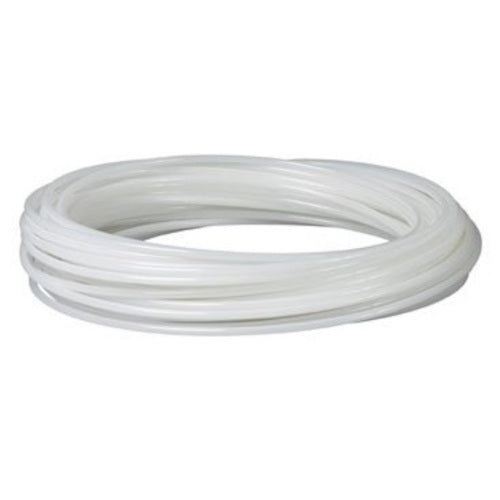

PTFE Imperial Tubing Natural

PlastockSKU: HR25F.024.008.030.NAT

Outside/Inside Diameter (inches): 3/32'' / 1/32''
Coil Length (m): 30
Price:
Sale price£76.23

All prices Ex VAT. Shipping calculated at checkout

Estimated Availability 1-5 Working Days

Details

Polytetrafluoroethylene (PTFE) is a high performance, synthetic fluoropolymer with product characteristics including a very high working temperature, a low friction surface, very high electrical resistance and non-stick characteristics. With virtually total chemical resistance at temperatures up to 260°C PTFE tubing is suitable for the transport of all fluid chemicals and solvents.

PTFE tube has mechanical, electrical and medical applications. The combination of low friction and temperature resistance allows PTFE tubing to be used in applications such as sleeve bearings, push-pull cables and non-stick roller covers. It can also be used to protect less resistant materials such as glass and stainless steel on stirrers, thermometers and probes, and as insulation for electrical components in hot environments.

PTFE tubing is also available in metric sizes including ultra-thin wall tubing (inside diameter 0.2-1.5mm with a very thin wall of 0.1mm).

Please note: Coils may not be continuous lengths. If you require a continuous length please specify this when you order.

Material PTFE
Shape Tubing
Colour Natural
Density (g/cm³) 2.14-2.19
Water absorption (%) 0.01
Yield stress (MPa) 10
Elongation at break (%) 200-500
Shore hardness (scale D) 55-72
Tensile modulus of elasticity (MPa) 600-800
Melting temperature (°C) 327
Thermal conductivity (W/(m*K) 0.23
Service temp long term max (°C) 260

See Downloads tab for full technical properties
