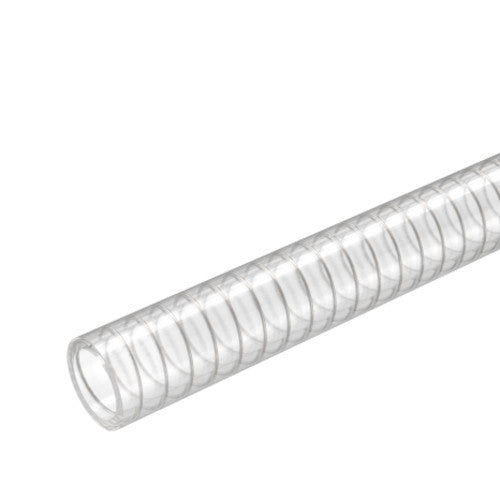

Plutone PU is a transparent ether based TPU hose reinforced with AISI 302 stainless steel spiral. It has completely smooth inside and outside surfaces to enhance flow properties and allow easy cleaning and sterilisation.
This extruded, low porosity TPU hose reduces permeation problems. It is highly neutral in taste and odor and preserves the organoleptic properties (taste, smell, color, texture) of the medium. It has very good chemical resistance to acids and alkaline solutions and good impermeability, as well as excellent resistance to microbes and hydrolysis. It is also resistant to oils and fats under common use conditions. Plutone PU does not need any vulcanization process which prevents the risk of curing agent residues leaching into the end product (peroxide or platinum volatile rests).
Plutone PU is food grade according to EU Regulation 10/2011 (classes A,B,C, D2 and E); FDA reg. (Title 21 CFR 177.2600). Its temperature range is -40 to 90°C (peaks 125 °C). Conductive by grounding the spiral (R<10² Ohm/m).
Typical applications include the suction of powders and high abrasive granules. Plutone PU is the ideal solution for conveying pharmaceutical and cosmetic powders, pills and tablets, for food flours and grains, sugar, salt and dry fruit, and for the transfer of olive oil and fatty food. Suitable also for food, pharmaceutical and cosmetic liquids with alcohol concentration up to max 20%.
Plutone PU hose can be supplied as cut lengths or supplied with couplings to suit your application. If you require an assembled hose please ask the Plastock team for more information.
| Service temp long term min (°C) | -40 |
| Service temp long term max (°C) | 90 |
| Service temp short term max (°C) | 125 |
| Chemical Resistance | See Downloads Tab |
