Nylon 6 PE Filled Green Sheet | Plastock

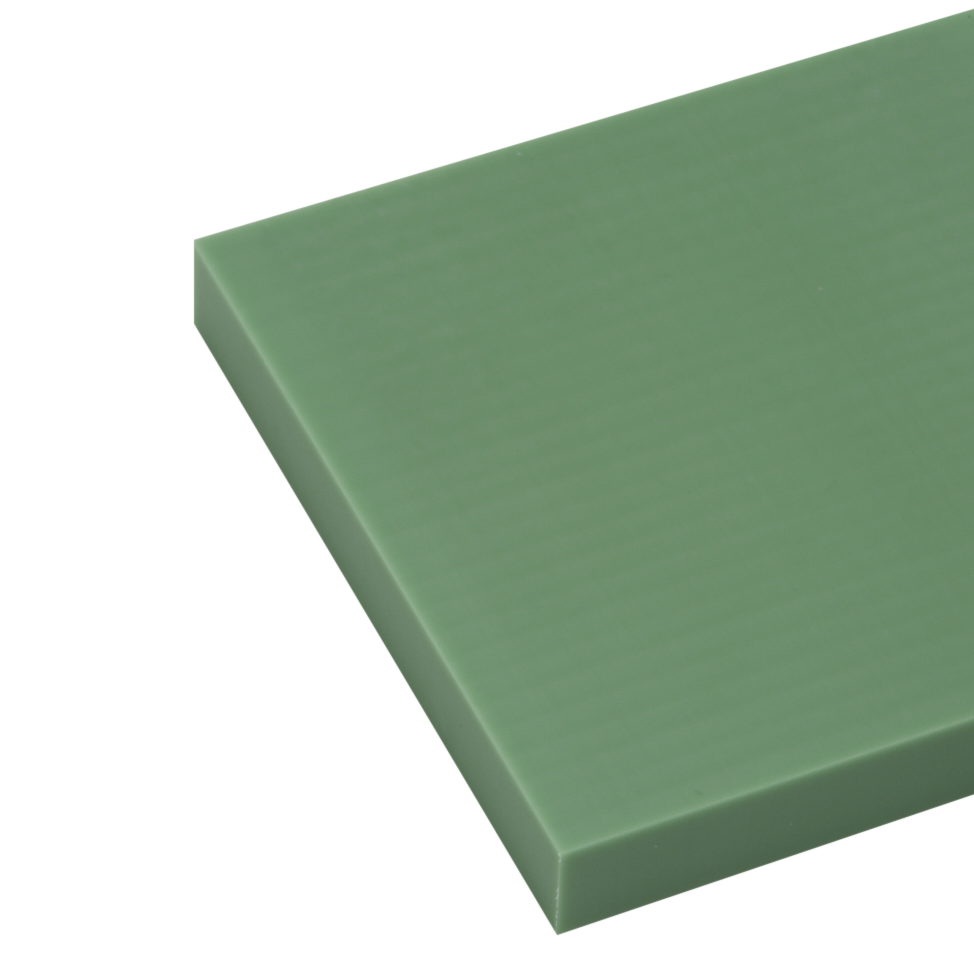

Nylon 6 PE Filled Green Sheet

by Plastock
£239.16 - £3,889.66
£239.16
£282.15
£282.15 - £3,889.66
£282.15
excl. VAT
SKU
Choose a Sheet Length (mm)
Choose a Sheet Width (mm)
Choose a Thickness (mm)

Nylon 6 PE Filled Green Sheet is semi-crystalline, engineering plastic with product characteristics that include excellent sliding and abrasion resistance properties, high mechanical strength and self-lubricating.

Nylon 6 PE Filled Green Sheet is semi-crystalline, engineering plastic with product characteristics that include excellent sliding and abrasion resistance properties, high mechanical strength and self-lubricating. The long term service temperature range of Nylon 6 Sheet is from -40°C to 110°C and has a short term maximum service temperature of 160°C.

Typical fields of application for Nylon 6 Sheet include mechanical engineering, bottling industry and conveyor technology. Nylon 6 Sheet is a material well suited to CNC routing, CNC milling and CNC turning. Similar materials available from Plastock include Nylon 6 Cast Natural Sheet and Nylon 6 Oil Filled Sheet.

If you have a requirement for machined or finished Nylon 6 components please ask the Plastock team for more information.

Colour Green
Density (g/cm³) 1.14
Ball indentation hardness (MPa) 170
CLTE (10⁻⁶K⁻¹) 80
Elongation at break (%) ≥35
Heat deflection temperature (°C) 90
Melting temperature (°C) 215
Notched impact strength (kJ/m²) ≥3.5
Shore hardness (scale D) 81
Tensile modulus of elasticity (MPa) 3400
Thermal capacity (kJ/(kg*K) 1.7
Thermal conductivity (W/(m*K) 0.25
Water absorption (%) 2
Yield stress (MPa) 75
Flammability 3mm HB
Flammability 6mm HB
Service temp long term min (°C) -40
Service temp long term max (°C) 110
Service temp short term max (°C) 160
Material type PE Filled
