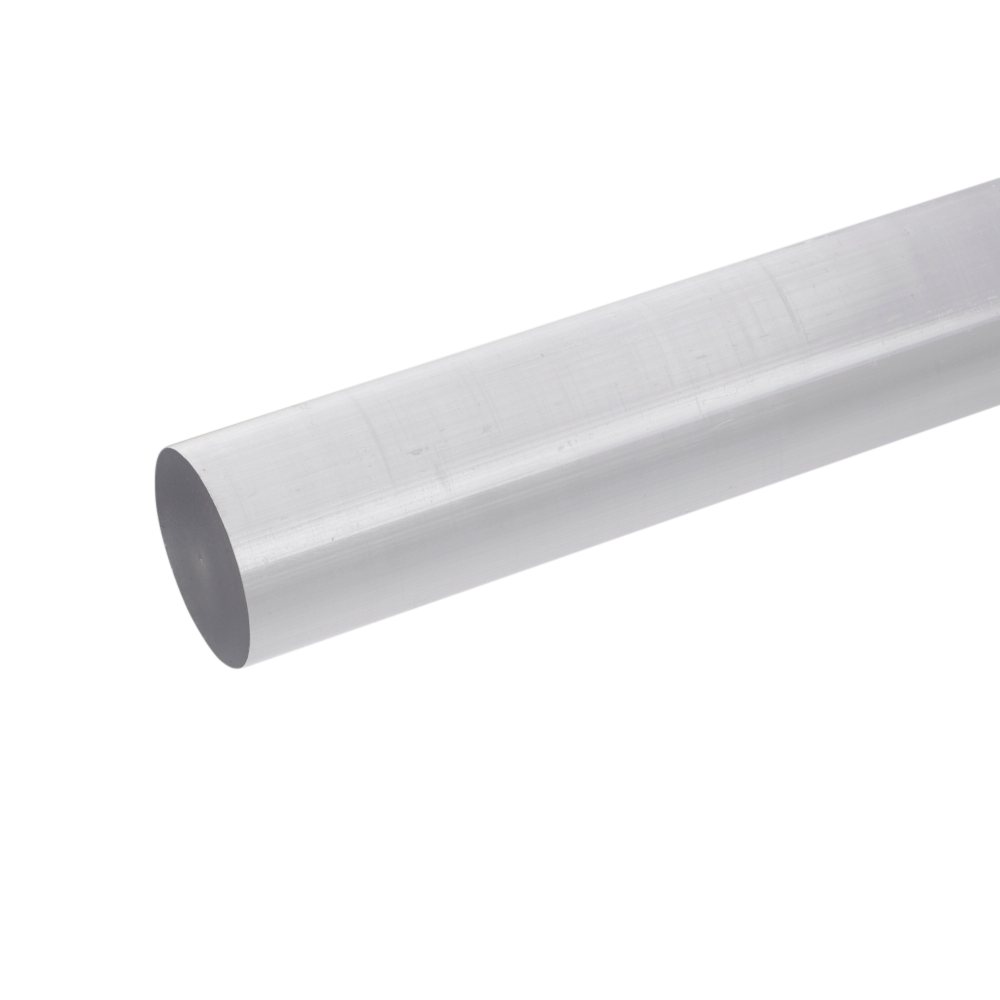

Nylon 12 Extruded Clear Rod

PlastockSKU: RR10A.E0400.CLR

Diameter (mm): 40
Length (mm): 1000
Sale price£158.12

All prices Ex VAT. Shipping calculated at checkout

Tolerance (mm) Min +0.2 Max +1.2
Contact us for availability


Nylon 12 Extruded Clear Rod is a tough, highly transparent engineering plastic with product characteristics including low moisture absorption, high stress crack resistance and high impact strength. Its high chemical resistance combined with good weather resistance make it possible to create components with high optical requirements which, if made with other transparent materials, tend to fail prematurely from material fatigue or insufficient chemical resistance.

Typical applications include optical components that benefit from the transparency and the materials high dynamic strength. If you have a requirement for machined or finished Nylon 12 components please ask the Plastock team for more information.

Colour Clear
Density (g/cm³) 1.0
Water absorption (%) 3
Yield stress (MPa) 66
Elongation at break (%) >50
Notched impact strength (kJ/m²) 13
Ball indentation hardness (MPa) 90
Shore hardness (scale D) 83
Tensile modulus of elasticity (MPa) 1470
Melting temperature (°C) 155
CLTE (10⁻⁶K⁻¹) 90
Service temp long term max (°C) 100
Heat deflection temperature B (°C) 135
Dielectric strength (kV/mm) 34
Volume resistivity (Ω*cm) ≥10¹¹
Surface resistivity (Ω) ≥10¹³
Comparative tracking index 600
Material type Extruded

Minimum order value excluding VAT & delivery is £25
