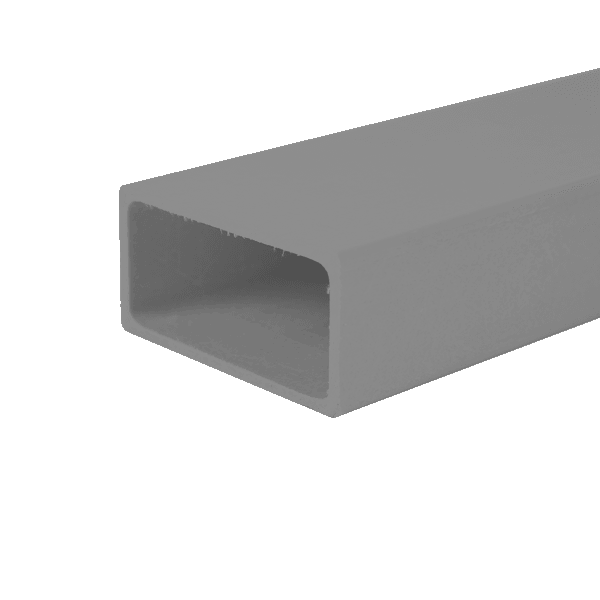

Glass Fibre Rectangular Grey Tube

PlastockSKU: TN85B.K1000.0500.080.GRY

External Dimensions (mm): 100 x 50
Wall Thickness (mm): 8
Length (mm): 2 x 2500
Price:
Sale price£237.00

All prices Ex VAT. Shipping calculated at checkout

Estimated Delivery 4-10 Working Days

Details

Our Glass Fibre Rectangular Tubes are pultruded in a polyester matrix to BS EN 13706 specifications. The fibreglass layup is a combination of multi-layered cross-ply glass fibre fabrics, giving an enhanced across axis strength for all round excellent mechanical properties.

Glass Fibre Tubes offer numerous benefits including a lightweight construction and a high strength-to-weight ratio that ensures reliable performance even under heavy loads. Their versatility and ease of handling make them a practical, cost effective choice for a wide range of structural applications while their resistance to corrosion make them an ideal choice for use in demanding environments. They can be easily machined and cut to size, allowing for easy customization to meet the unique requirements of your project.

Offering high performance and durability combined with ease of handling and installation, Glass Fibre Tubes are an ideal solution for a wide range of applications. Please ask the Plastock team for more information on our products and how we can help you achieve your project goals.

Colour Grey
Density (g/cm³) 1.8
Water absorption (%) 0.5-2
Construction Pultrusion
Resin Matrix Polyester
Fibre Orientation Crossdirectional
CLTE (10⁻⁶K⁻¹) 7.2
Barcol hardness 40-70
Tensile strength (MPa) 500
Flexural strength (MPa) Up to 13.8 mm dia: 650
Over 13.8 mm dia: 450
Compressive strength (MPa) Up to 13.8mm dia: 190
Over 13.8mm dia: 150
Tensile modulus (MPa) 2.7x10⁴
Flexural modulus (MPa) Up to 13.8mm dia: 3.0x10⁴
Over 13.8mm dia: 2.4x10⁴
Heat distortion temp (°C) 125-145
Dielectric strength (kV/mm) 25
Surface resistivity (Ω) 10¹⁰-10¹⁵
Volume resistivity (Ω) 10¹⁵
Insulation resistance (MΩ) 1000
Permittivity @ 50hz 5
Dissipation factor 0.02
Comparative tracking index 600
Arc resistance (s) 300
