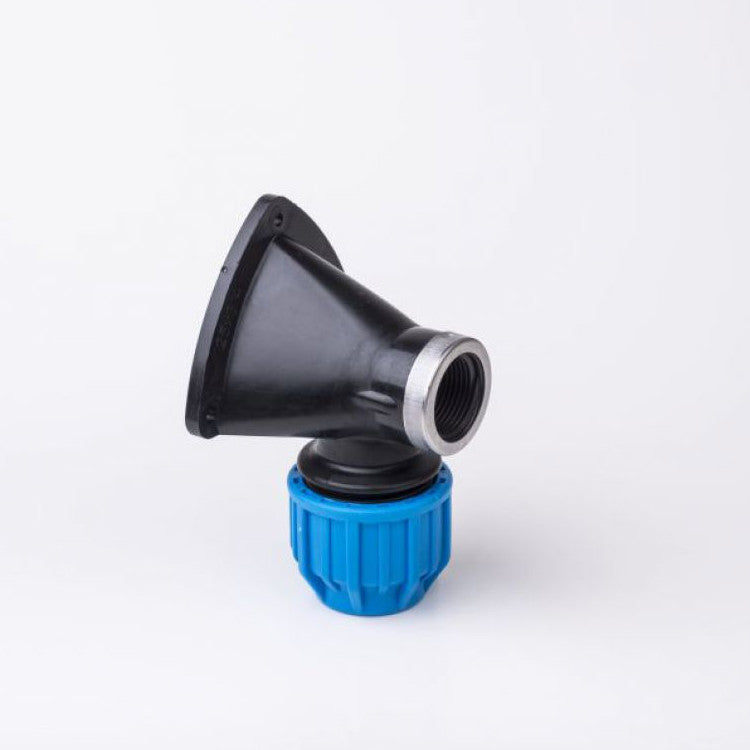

Compression Wall Plate Elbow

PlastockSKU: OU22A.EW.020.A

Size: 20mm x 1/2"
Sale price£9.54

All prices Ex VAT. Shipping calculated at checkout

Estimated Delivery 1-5 Working Days


Compression Wall Plate Elbows are used to connect polyethylene (PELD, PEMD and PEHD) and PPR pipes for the distribution of pressurised fluids in irrigation and water systems. They meet the requirements of the Water Regulations Advisory Scheme for potable water and have an operating temperature range of -10°C to 80°C.

The fitting, equipped with a BSP (GAS) female thread, does not have to be completely disassembled to install (see Installation tab) and is designed and tested to guarantee a PN16 working pressure. It is used in drinking water conveyance systems in aqueducts and civil installations, in irrigation and gardening, fire-fighting systems, geothermal systems, waste and industrial water conveyance and compressed air systems.

  • Cut the pipe squarely and chamfer the ends.
  • Loosen the nut to open the clinching ring and make the pipe easier to insert. The nut and the inside components (thrust ring and O-ring) should not extracted from the body.
  • Gently push the pipe into the fitting until it stops inside the body
  • Tighten the nut completely. The fitting is now ready for use.
Colour Black/Blue
Working temp/pressure 20°C - 18bar
45°C - 10.8bar
70°C - 3.4bar
Service temp long term min (°C) -10
Service temp long term max (°C) 80
Material type Pipe Fittings
