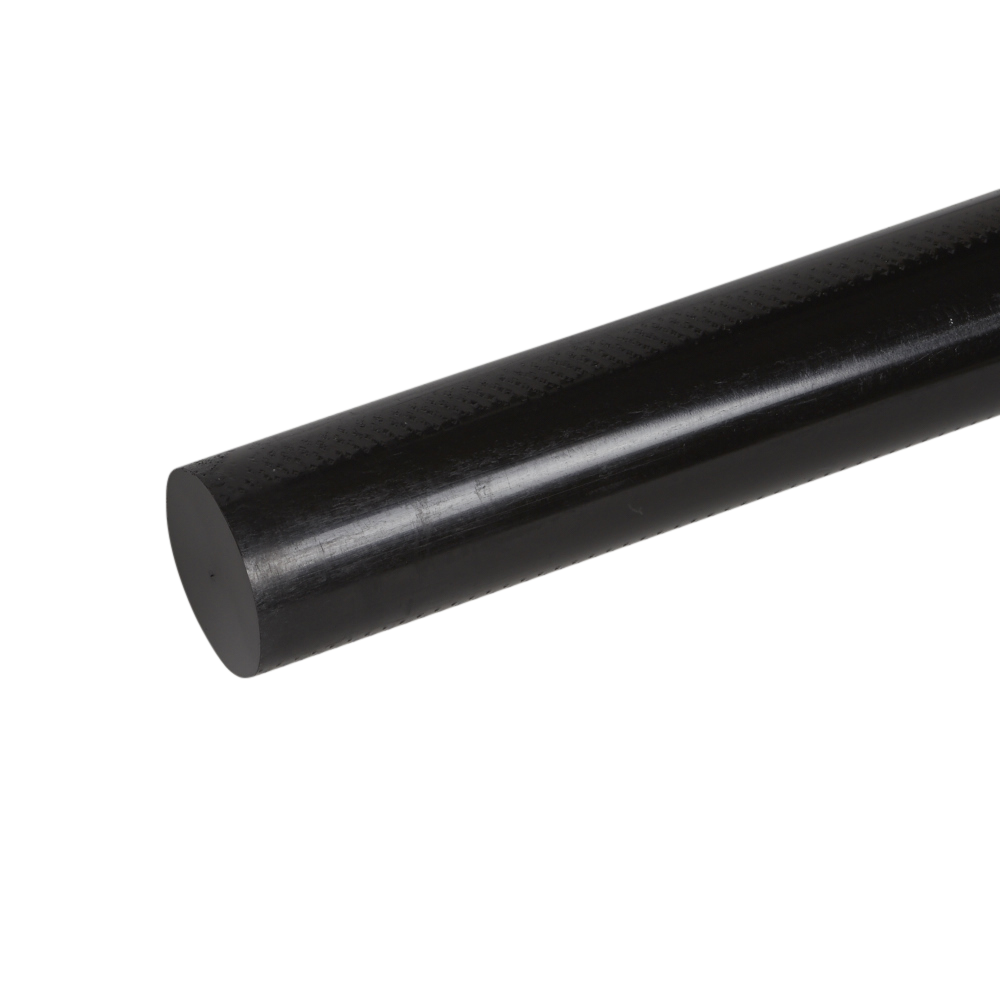

Acetal C ELS (Electrically Conductive) Black Rod

PlastockSKU: RR01A.E0300.BLK

Diameter (mm): 30
Length (mm): 1000
Price:
Sale price£69.83

All prices Ex VAT. Shipping calculated at checkout

-
Tolerance (mm) Min +0.2 Max +1.0
Contact us for availability

Details

Acetal C ELS (Electrically Conductive) Black Rod is a high performance engineering plastic with product characteristics including enhanced electrical conductivity. The surface resistance, measured on the semi-finished product, is ≤10⁴ Ω with a volume resistance of ≤10¹ Ω*cm. Other properties include:

  • High strength and stiffness
  • High rigidity (to -40 °C)
  • High thermal stability
  • High dimensional stability
  • Low water absorption
  • Very good sliding properties
  • High resistance to solvents
  • Very high resistance to stress cracks

Typical applications include earthing strips, flanges and sleeves, and components in contact with dust or powder. If you have a requirement for machined or finished Acetal C components please ask the Plastock team for more information.

Material Acetal C
Shape Rod
Colour Black
Density (g/cm³) 1.38
Water absorption (%) 0.8
Yield stress (MPa) 39
Elongation at break (%) 11
Notched impact strength (kJ/m²) 7.5
Shore hardness (scale D) 84
Tensile modulus of elasticity (MPa) 2005
Melting temperature (°C) 166
CLTE (10⁻⁶K⁻¹) 120
Service temp long term min (°C) -50
Service temp long term max (°C) 110
Heat deflection temperature (°C) 82
Surface resistivity (Ω) ≤10⁴
Volume resistivity (Ω*cm) ≤10¹
Material type Electrically Conductive
