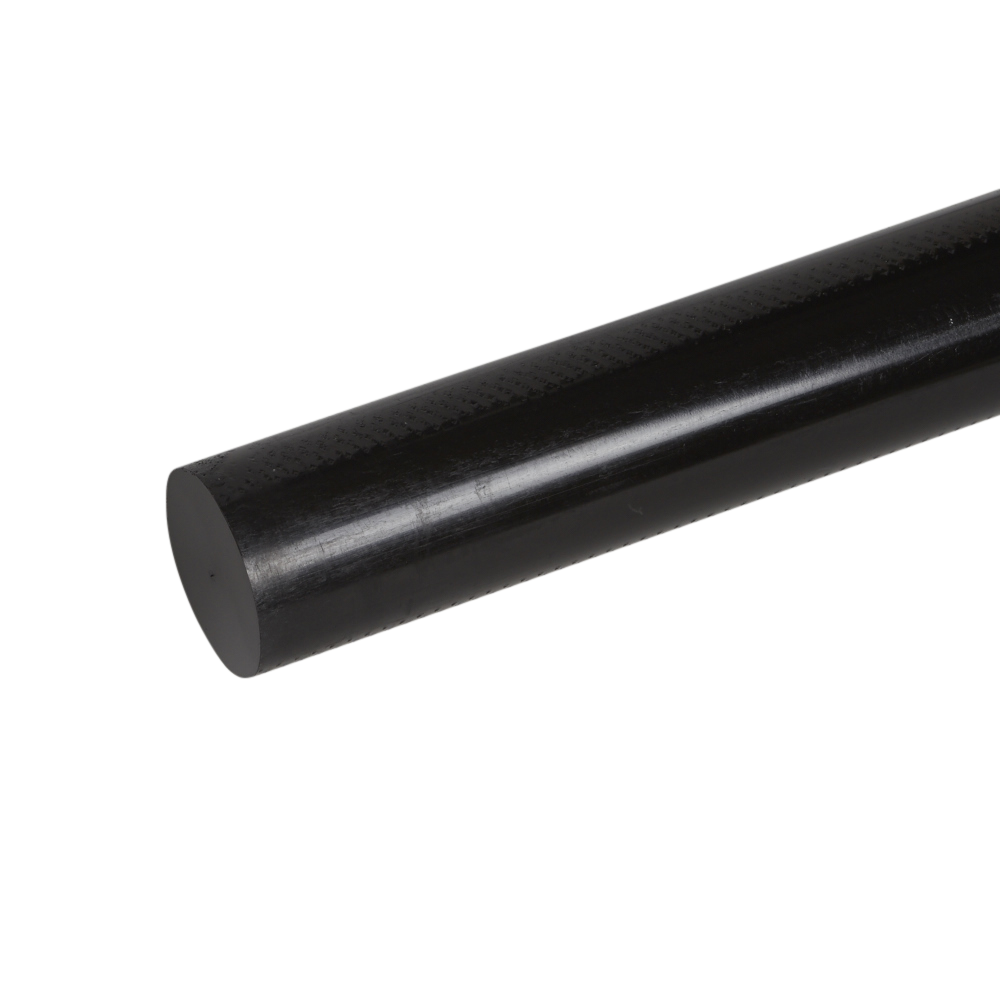

Acetal C 25% Glass Filled Black Rod

PlastockSKU: RR01G.E0300.BLK

Diameter (mm): 30
Length (mm): 1000
Sale price£80.88

All prices Ex VAT. Shipping calculated at checkout

Tolerance (mm) Min +0.2 Max +0.8
Contact us for availability


Acetal C 25% Glass Filled Rod offers increased strength for many applications when compared to non-reinforced Acetal C. In addition, the glass fibre reinforcement reduces the coefficient of expansion while increasing the heat deflection temperature. By compounding the glass fibres some properties have been optimised to the level of metallic materials. Other properties include:

  • High rigidity (to -40 °C)
  • High thermal stability
  • High dimension stability
  • Low water absorption
  • Good electrical insulating properties
  • High strength and stiffness
  • Very good sliding properties
  • High resistance to solvents
  • Very high resistance to stress cracks

Typical applications include components for machinery engineering. If you have a requirement for machined or finished Acetal C components please ask the Plastock team for more information.

Colour Black
Density (g/cm³) 1.58
Water absorption (%) 0.9
Elongation at break (%) 3
Notched impact strength (kJ/m²) 9
Tensile modulus of elasticity (MPa) 8800
Melting temperature (°C) 168
CLTE (10⁻⁶K⁻¹) 40
Service temp long term min (°C) -40
Service temp long term max (°C) 110
Heat deflection temperature (°C) 163
Dielectric constant 4
Dielectric strength (kV/mm) 43
Volume resistivity (Ω*cm) ≥10¹²
Surface resistivity (Ω) ≥10¹³
Comparative tracking index 600
Flammability HB
Material type Glass Filled
