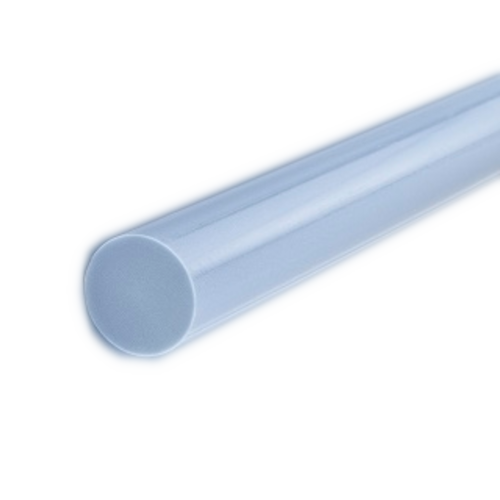

Acetal C 10% PE Filled Light Blue Rod

PlastockSKU: RR01D.E0200.LBL

Diameter (mm): 20
Length (mm): 1000
Sale price£43.13

All prices Ex VAT. Shipping calculated at checkout

Tolerance (mm) Min +0.2 Max +0.8
Contact us for availability


Acetal C 10% PE Filled Light Blue Rod is a high performance engineering plastic with product characteristics including excellent sliding properties, high dimensional stability and raw material food contact approval. The Acetal C is modified with the addition of a solid lubricant, 10% polyethylene (PE). This alters the properties of the base Acetal C which improves sliding and frictional properties, providing enhanced wear characteristics. Other properties include:

  • High rigidity (to -40 °C)
  • High thermal stability
  • High dimension stability
  • Low water absorption
  • Good electrical insulating properties
  • High strength and stiffness
  • Very good sliding properties
  • High resistance to solvents
  • Very high resistance to stress cracks

Typical fields of application for PE Filled Acetal C include sliding bearings, valve parts, roller conveyors, chain guides and press pads.

If you have a requirement for machined or finished Acetal C components please ask the Plastock team for more information.

Colour Light Blue
Density (g/cm³) 1.34
Water absorption (%) 0.8
Yield stress (MPa) 44
Elongation at break (%) 10
Shore hardness (scale D) 79
Tensile modulus of elasticity (MPa) 2160
Melting temperature (°C) 164
Thermal conductivity (W/(m*K) 0.3
CLTE (10⁻⁶K⁻¹) 120
Service temp long term min (°C) -40
Service temp long term max (°C) 100
Heat deflection temperature (°C) 120
Dielectric constant 4.4
Dielectric strength (kV/mm) 35
Volume resistivity (Ω*cm) ≥10¹³
Surface resistivity (Ω) ≥10¹³
Comparative tracking index 600
Flammability HB
Material type PE Filled
