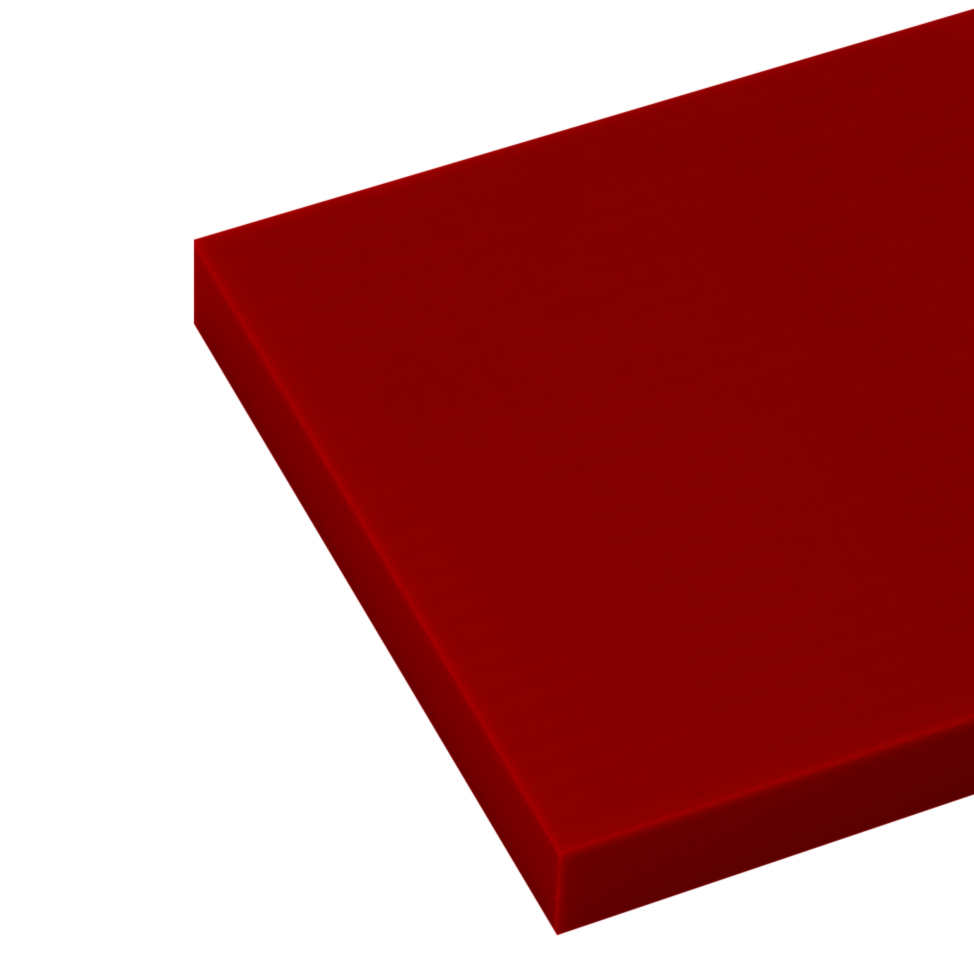

PVC Red Sheet (PVC-U)

PlastockSKU: SF27E.IE0010.RED

Thickness (mm): 1
Sheet Length (mm): 2000
Sheet Width (mm): 1000
Sale price£36.55

All prices Ex VAT. Shipping calculated at checkout

Estimated Delivery 1-5 Working Days


UPVC Extruded Red Sheet is a synthetic polymer with product characteristics including high resistance to acids, lyes and salt solutions, flame retardance properties self-extinguishing after removal of flame and easy processing by welding, thermoforming and bonding. The long term service temperature range of UPVC Sheet is from 0°C to 60°C and has a short term maximum service temperature of 70°C.

Typical fields of application for UPVC Sheet include chemical engineering, tank building and pump engineering. UPVC Sheet is a material well suited to CNC routing, CNC milling and Bonding. Similar materials available from Plastock include UPVC Extruded White Sheet and UPVC Extruded Black Sheet .

If you have a requirement for machined or finished UPVC components please ask the Plastock team for more information.

Colour Red
Density (g/cm³) 1.44
Yield stress (MPa) 50
Elongation at break (%) 15
Notched impact strength (kJ/m²) 4
Ball indentation hardness (MPa) 120
Shore hardness (scale D) 80
Tensile modulus of elasticity (MPa) 3200
Melting temperature (°C) 216
Thermal conductivity (W/(m*K) 0.2
CLTE (10⁻⁶K⁻¹) 80
Service temp long term min (°C) 0
Service temp long term max (°C) 60
Service temp short term max (°C) 70
Heat deflection temperature (°C) 60
Dielectric constant 3
Dielectric strength (kV/mm) 32
Volume resistivity (Ω*cm) 10¹⁵
Surface resistivity (Ω) 10¹³
Comparative tracking index 600
Flammability 3mm VO
Flammability 6mm VO
Material type Extruded

Minimum order value excluding VAT & delivery is £25

What is the cost of delivery?

Because of the huge variation in our orders we have developed a specialised shipping calculator for clients ordering online. Once you fill out your order details and progress through to the online checkout, our calculator will automatically work out the precise shipping cost for you to check before you proceed.

What delivery methods do you use?

We have a selection of couriers suited to the size, weight and type of product you order from us. It is likely we will deliver your goods with a courier service such as Tuffnells, TNT, DHL etc. You can track your order with the shipment number, if you would like us to send you the tracking number for your order please contact us or give us a call and we can track it for you.

If you would like to specify any special delivery instructions these can be entered at the point of ordering or please give us a call once you have placed your order and we will try to accommodate your requests.

Delivery options...

  • Collection. Once your order is ready for collection, we shall call you to advise. Our collection point is open until 5pm - Monday - Friday.
  • Standard Delivery. All of our orders come with standard delivery which is typically a 1-3 working day service. Standard delivery assumes reasonable access and is to ground floor, or use of a suitable lift for anything above ground level.
  • In a hurry? We can look into premium delivery services at an extra cost. Give us a call on 01494 449 975 to find out more.
  • Installation. If required please get in touch about our installation services and how we can best support you, all with a smile!

See our shipping page for more details.
