Description

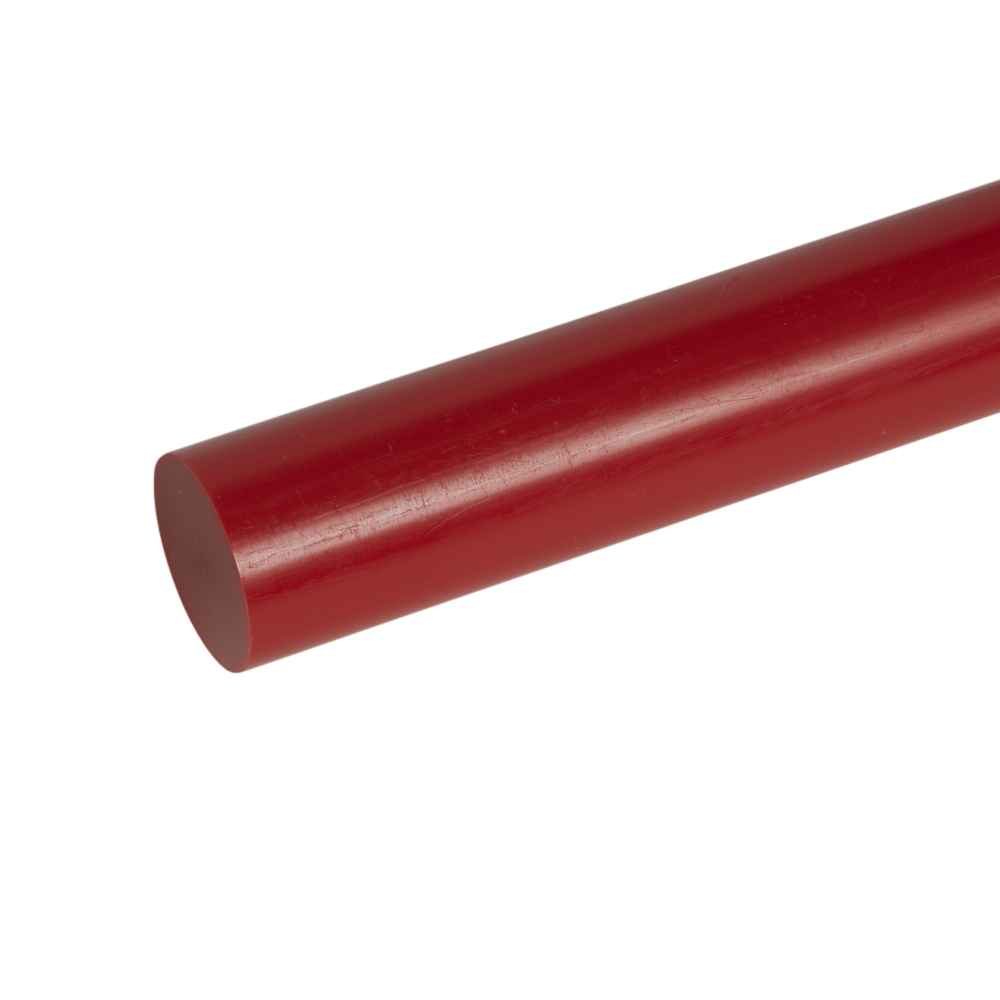

UPVC Extruded Red Rod is a synthetic polymer with product characteristics including high resistance to acids, lyes and salt solutions, flame retardance properties, self-extinguishing after removal of flame and easy processing by welding, thermoforming and bonding. The long term service temperature range of UPVC Rod is from 0°C to 60°C and has a short term maximum service temperature of 70°C.

Typical fields of application for UPVC Rod include chemical engineering, tank building and pump engineering. UPVC Rod is a material well suited to billeting, precision grinding and CNC turning. Similar materials available from Plastock include PE300 (HDPE) Extruded Black Rod and PE500 (HMWPE) Extruded Natural Rod.

If you have a requirement for machined or finished UPVC components please ask the Plastock team for more information.

Tech Specs

Colour	Red
Density (g/cm³)	1.44
Yield stress (MPa)	50
Elongation at break (%)	15
Notched impact strength (kJ/m²)	4
Ball indentation hardness (MPa)	120
Shore hardness (scale D)	80
Tensile modulus of elasticity (MPa)	3200
Melting temperature (°C)	216
Thermal conductivity (W/(m*K)	0.2
CLTE (10⁻⁶K⁻¹)	80
Service temp long term min (°C)	0
Service temp long term max (°C)	60
Service temp short term max (°C)	70
Heat deflection temperature (°C)	60
Dielectric constant	3
Dielectric strength (kV/mm)	32
Volume resistivity (Ω*cm)	10¹⁵
Surface resistivity (Ω)	10¹³
Comparative tracking index	600
Flammability 3mm	VO
Flammability 6mm	VO
Material type	Extruded

PVC Red Rod (PVC-U)
