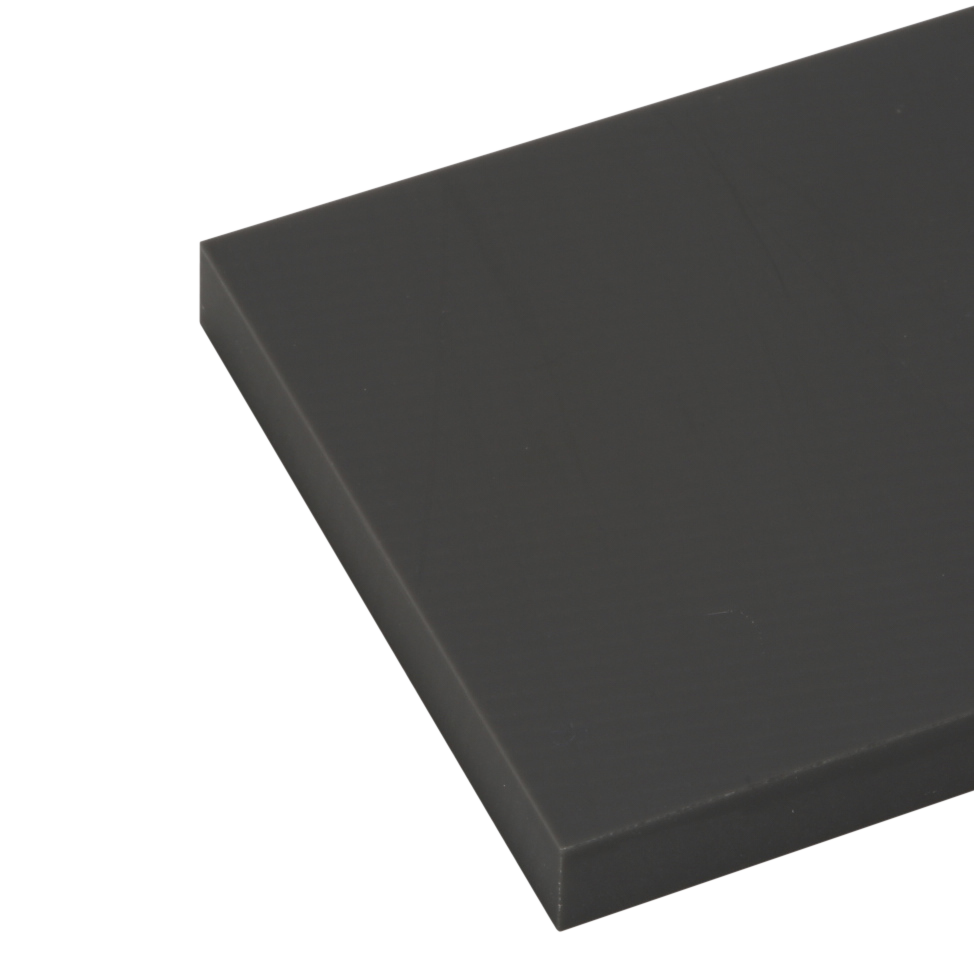

UPVC Extruded Grey (RAL 7011) Sheet
UPVC Extruded Grey (RAL 7011) Sheet is a synthetic polymer with product characteristics including high resistance to acids, lyes and salt solutions, flame retardance properties, self-extinguishing after removal of flame and easy processing by welding, thermoforming and bonding.
- Tech Specs
UPVC Extruded Grey (RAL 7011) Sheet is a synthetic polymer with product characteristics including high resistance to acids, lyes and salt solutions, flame retardance properties self-extinguishing after removal of flame and easy processing by welding, thermoforming and bonding. The long term service temperature range of UPVC Sheet is from 0°C to 60°C and has a short term maximum service temperature of 70°C.
Typical fields of application for UPVC Sheet include chemical engineering, tank building and pump engineering. UPVC Sheet is a material well suited to CNC routing, CNC milling and Bonding. Similar materials available from Plastock include UPVC Extruded (PE Filmed 1-side) White Shee and UPVC Extruded (PE Filmed 2-sides) Blue Tint Sheet .
If you have a requirement for machined or finished UPVC components please ask the Plastock team for more information.
|Colour||Grey (RAL 7011)|
|Ball indentation hardness (MPa)||120|
|Comparative tracking index||600|
|Dielectric strength (kV/mm)||32|
|Elongation at break (%)||15|
|Heat deflection temperature (°C)||60|
|Melting temperature (°C)||216|
|Notched impact strength (kJ/m²)||4|
|Shore hardness (scale D)||80|
|Surface resistivity (Ω)||10¹³|
|Tensile modulus of elasticity (MPa)||3200|
|Thermal conductivity (W/(m*K)||0.2|
|Volume resistivity (Ω*cm)||10¹⁵|
|Yield stress (MPa)||50|
|Service temp long term min (°C)||0|
|Service temp long term max (°C)||60|
|Service temp short term max (°C)||70|
