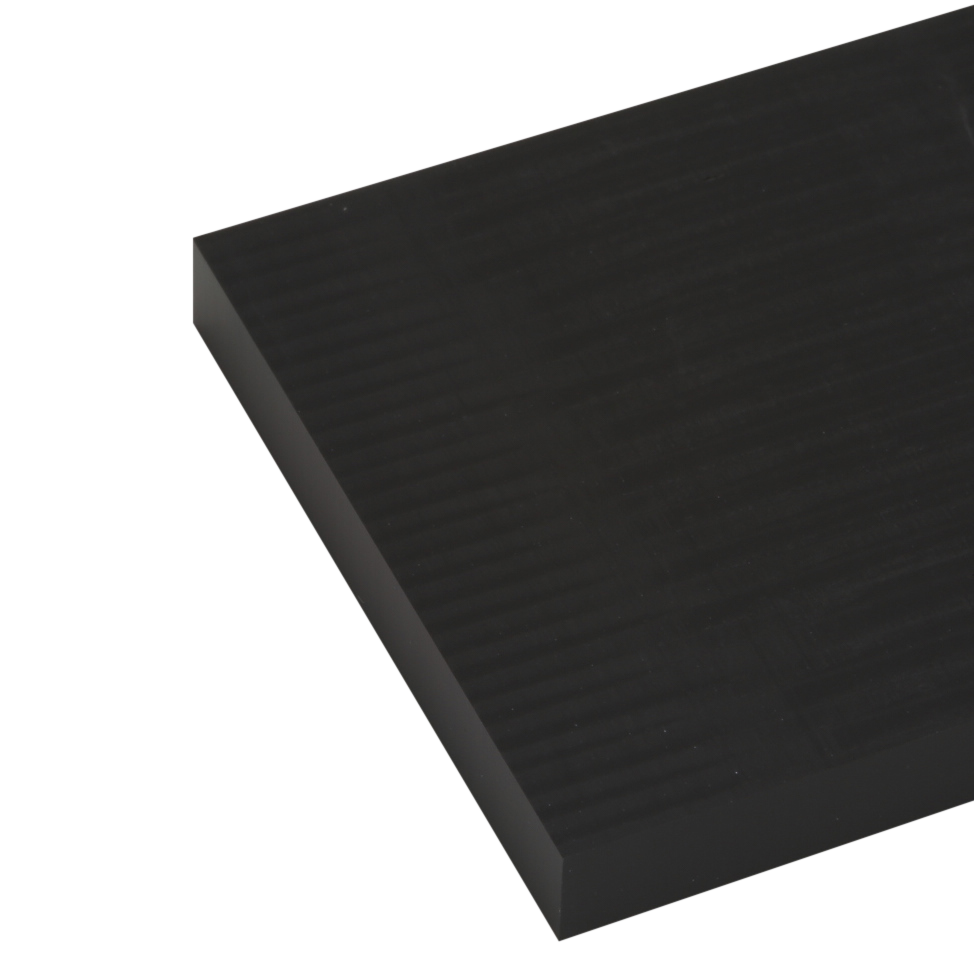

PVC Black Sheet (PVC-U)

PlastockSKU: SF27E.IE0010.BLK

Thickness (mm): 1
Sheet Length (mm): 2000
Sheet Width (mm): 1000
Price:
Sale price£36.55

All prices Ex VAT. Shipping calculated at checkout

Estimated Delivery 1-5 Working Days

Details

UPVC Extruded Black Sheet is a synthetic polymer with product characteristics including high resistance to acids, lyes and salt solutions, flame retardance properties self-extinguishing after removal of flame and easy processing by welding, thermoforming and bonding. The long term service temperature range of UPVC Sheet is from 0°C to 60°C and has a short term maximum service temperature of 70°C.

Typical fields of application for UPVC Sheet include chemical engineering, tank building and pump engineering. UPVC Sheet is a material well suited to CNC routing, CNC milling and Bonding. Similar materials available from Plastock include UPVC Extruded White Sheet and UPVC Extruded Red Sheet .

If you have a requirement for machined or finished UPVC components please ask the Plastock team for more information.

Colour Black
Density (g/cm³) 1.44
Yield stress (MPa) 50
Elongation at break (%) 15
Notched impact strength (kJ/m²) 4
Ball indentation hardness (MPa) 120
Shore hardness (scale D) 80
Tensile modulus of elasticity (MPa) 3200
Melting temperature (°C) 216
Thermal conductivity (W/(m*K) 0.2
CLTE (10⁻⁶K⁻¹) 80
Service temp long term min (°C) 0
Service temp long term max (°C) 60
Service temp short term max (°C) 70
Heat deflection temperature (°C) 60
Dielectric constant 3
Dielectric strength (kV/mm) 32
Volume resistivity (Ω*cm) 10¹⁵
Surface resistivity (Ω) 10¹³
Comparative tracking index 600
Flammability 3mm VO
Flammability 6mm VO
Material type Extruded
