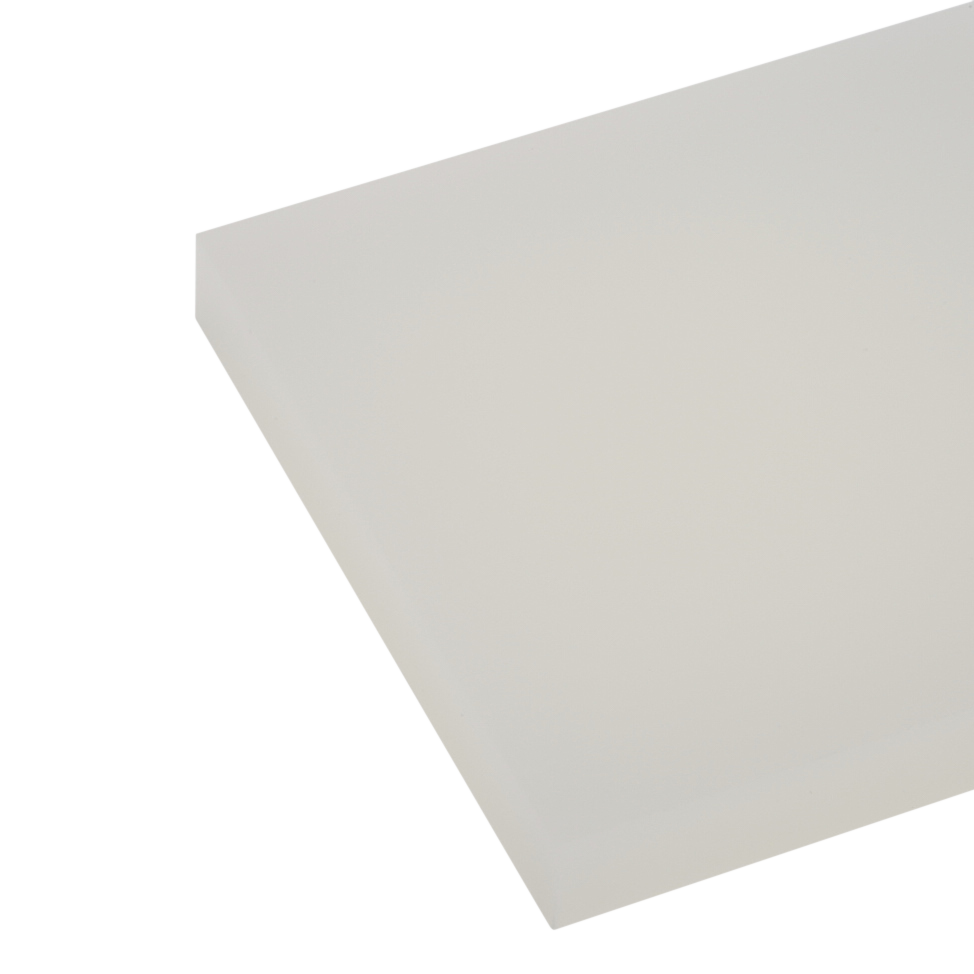

PVDF Pressed Natural Sheet

PlastockSKU: SF29D.IE0200.NAT

Thickness (mm): 20
Sheet Length (mm): 2000
Sheet Width (mm): 1000
Price:
Sale price£6,901.94

All prices Ex VAT. Shipping calculated at checkout

Estimated Delivery 1-5 Working Days

Details

PVDF Pressed Natural Sheet is a vinylidene-fluoride-based polymerisate with product characteristics including very good UV resistance, high purity and excellent chemical resistance. The long term service temperature range of PVDF Sheet is from -50°C to 140°C and has a short term maximum service temperature of 150°C.

With virtually no moisture absorption, excellent machinability and high purity PVDF Extruded Natural Sheet is ideal for fields of application including chemical engineering, electrical and semiconductor industries and food processing industries.

PVDF Sheet is a material well suited to CNC routing, CNC milling and welding. Similar materials available from Plastock include PVDF Electrically Conductive Natural Sheet and PVDF Extruded Natural Sheet.

If you have a requirement for machined or finished PVDF components please ask the Plastock team for more information.

Colour Natural
Density (g/cm³) 1.78
Yield stress (MPa) 55
Elongation at break (%) 30
Notched impact strength (kJ/m²) 12
Ball indentation hardness (MPa) 130
Shore hardness (scale D) 80
Tensile modulus of elasticity (MPa) 2100
Melting temperature (°C) 178
Thermal conductivity (W/(m*K) 0.2
Thermal capacity (kJ/(kg*K) 1.2
CLTE (10⁻⁶K⁻¹) 140
Service temp long term min (°C) -50
Service temp long term max (°C) 140
Service temp short term max (°C) 150
Heat deflection temperature (°C) 115
Dielectric constant 9
Dielectric strength (kV/mm) 21
Volume resistivity (Ω*cm) 10¹⁴
Surface resistivity (Ω) 10¹⁴
Comparative tracking index 600
Flammability 3mm VO
Flammability 6mm VO
Material type Pressed
