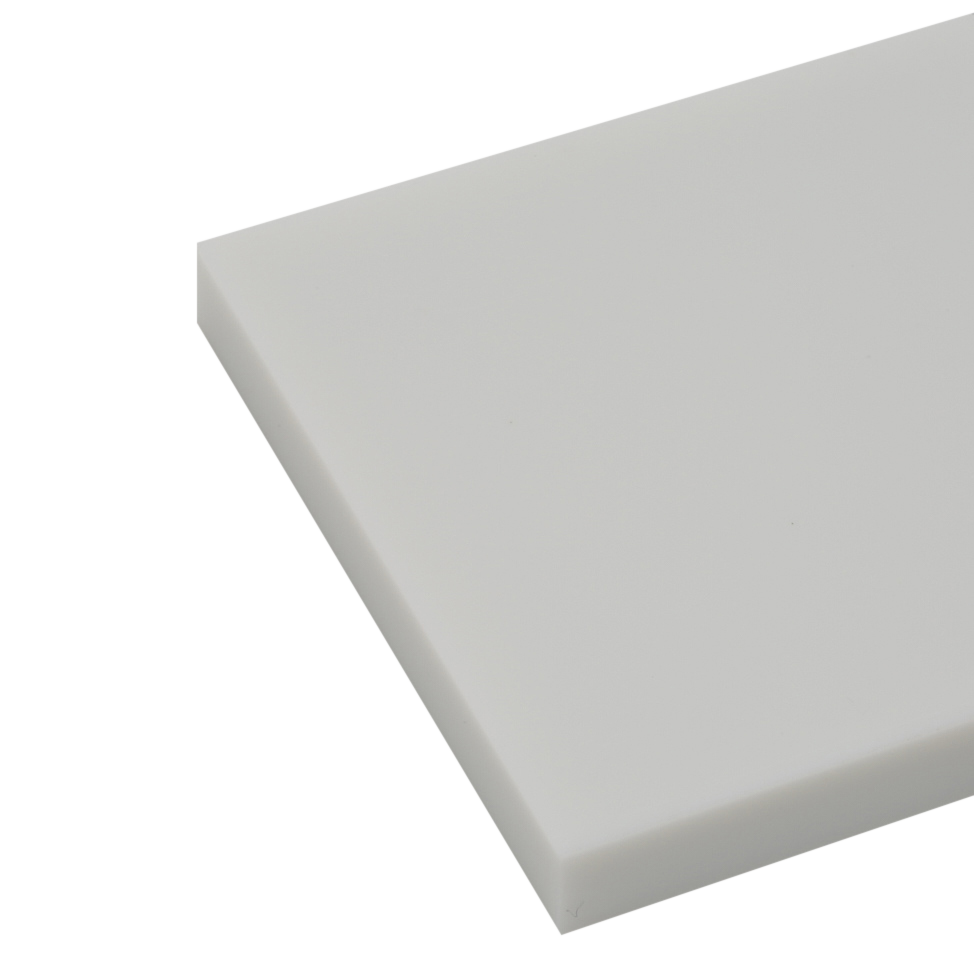

PTFE Extruded Virgin Etched One Side White Sheet is a high performance, synthetic fluoropolymer with product characteristics including very high strength, self lubrication at low temperatures and high toughness at low temperatures as well as very good flexibility at temperatures above -70°C.
PTFE is well known for being a non-stick material, therefore to enable bonding of PTFE Virgin Sheet to other substrates the surface is chemically etched. The long term service temperature range of Extruded Virgin Etched One Side PTFE Sheet is from -200°C to 260°C and has a short term maximum service temperature of 300°C.
Typical fields of application for Extruded Virgin Etched One Side PTFE Sheet include aerospace industries, electrical and electronic industries and automotive industries. Extruded Virgin Etched One Side PTFE Sheet is a material well suited to CNC milling, CNC routing and planing. Similar materials available from Plastock include PTFE 25% Glass Filled White Sheet and PTFE Virgin Extruded White Sheet.
If you have a requirement for machined or finished Extruded Virgin Etched One Side components please ask the Plastock team for more information.
Colour | White |
Density (g/cm³) | 2.16 |
Shore hardness (scale D) | 55 |
Tensile modulus of elasticity (MPa) | 690 |
Thermal conductivity (W/(m*K) | 0.2 |
Service temp long term min (°C) | -200 |
Service temp long term max (°C) | 260 |
Service temp short term max (°C) | 300 |
Dielectric constant | 2.1 |
Dielectric strength (kV/mm) | 20 |
Volume resistivity (Ω*cm) | 10¹⁷ |
Surface resistivity (Ω) | 10¹⁶ |
Comparative tracking index | 600 |
Flammability 3mm | VO |
Flammability 6mm | VO |
Material type | Extruded Virgin |
