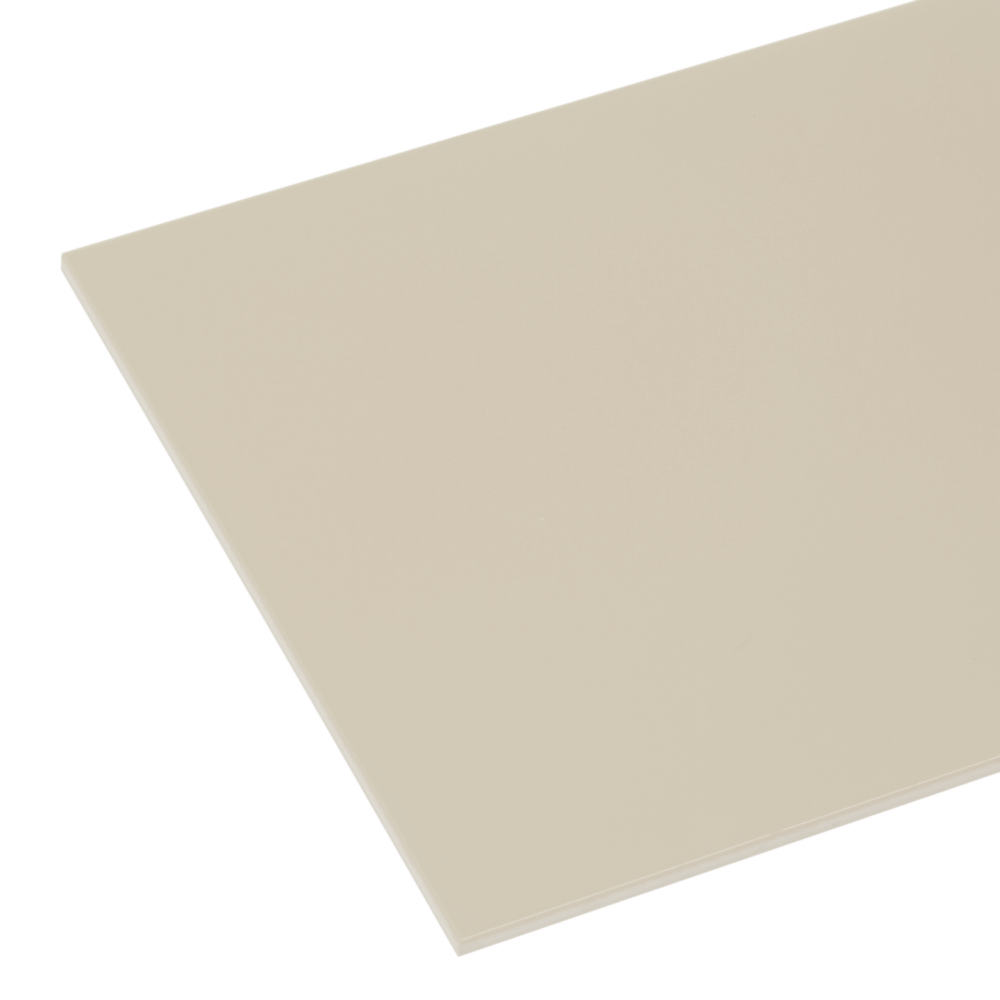

PPH Pressed and Planed Beige Sheet is a product with characteristics including high strength, very high heat resistance and high chemical and corrosion resistance. The long term service temperature range of PPH Sheet is from 0°C to 100°C and has a short term maximum service temperature of 150°C.
Typical fields of application for PPH Sheet include chemical engineering, tank building and laboratory technology. PPH Sheet is a material well suited to CNC routing, welding and fabrication.
If you have a requirement for machined or finished PPH components please ask the Plastock team for more information.
Material | PPH |
Shape | Sheet |
Colour | Beige |
Density (g/cm³) | 0.91 |
Yield stress (MPa) | 32 |
Elongation at break (%) | >50 |
Notched impact strength (kJ/m²) | 4 |
Shore hardness (scale D) | 72 |
Tensile modulus of elasticity (MPa) | 1300 |
Melting temperature (°C) | 167 |
Thermal conductivity (W/(m*K) | 0.2 |
Thermal capacity (kJ/(kg*K) | 1.7 |
CLTE (10⁻⁶K⁻¹) | 120 |
Service temp long term min (°C) | 0 |
Service temp long term max (°C) | 100 |
Service temp short term max (°C) | 150 |
Heat deflection temperature (°C) | 90 |
Dielectric constant | 2.4 |
Dielectric strength (kV/mm) | 45 |
Surface resistivity (Ω) | 10¹³ |
Comparative tracking index | 600 |
Flammability 3mm | HB |
Flammability 6mm | HB |
Material type | Pressed/Planed |
