Description

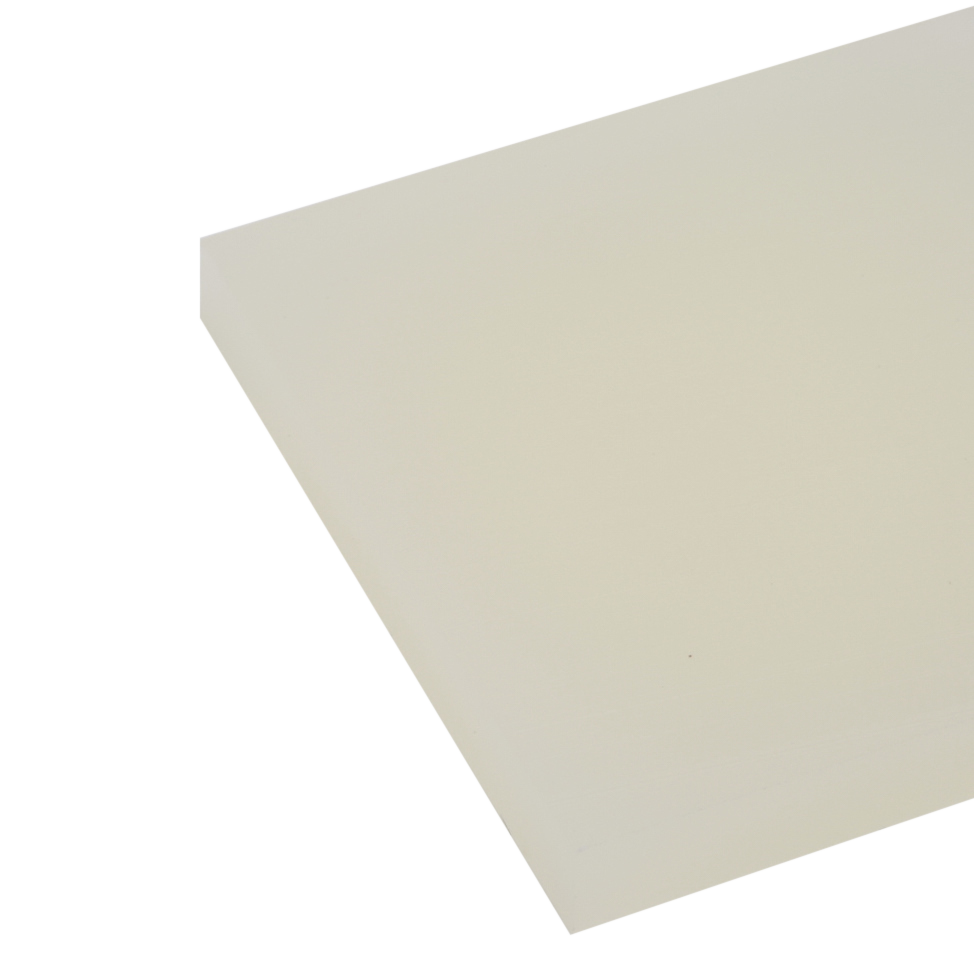

PPH Extruded Natural Sheet is a product with characteristics including high strength, very high heat resistance and high chemical and corrosion resistance. The long term service temperature range of PPH Sheet is from 0°C to 100°C and has a short term maximum service temperature of 150°C.

Typical fields of application for PPH Sheet include chemical engineering, tank building and laboratory technology. PPH Sheet is a material well suited to CNC routing, welding and fabrication.

If you have a requirement for machined or finished PPH components please ask the Plastock team for more information.

Tech Specs

Colour	Natural
Density (g/cm³)	0.91
Yield stress (MPa)	32
Elongation at break (%)	>50
Notched impact strength (kJ/m²)	4
Shore hardness (scale D)	72
Tensile modulus of elasticity (MPa)	1300
Melting temperature (°C)	167
Thermal conductivity (W/(m*K)	0.2
Thermal capacity (kJ/(kg*K)	1.7
CLTE (10⁻⁶K⁻¹)	120
Service temp long term min (°C)	0
Service temp long term max (°C)	100
Service temp short term max (°C)	150
Heat deflection temperature (°C)	90
Dielectric constant	2.4
Dielectric strength (kV/mm)	45
Surface resistivity (Ω)	10¹³
Comparative tracking index	600
Flammability 3mm	HB
Flammability 6mm	HB
Material type	Extruded
