PEEK 30% Glass Filled Natural Rod | Plastock

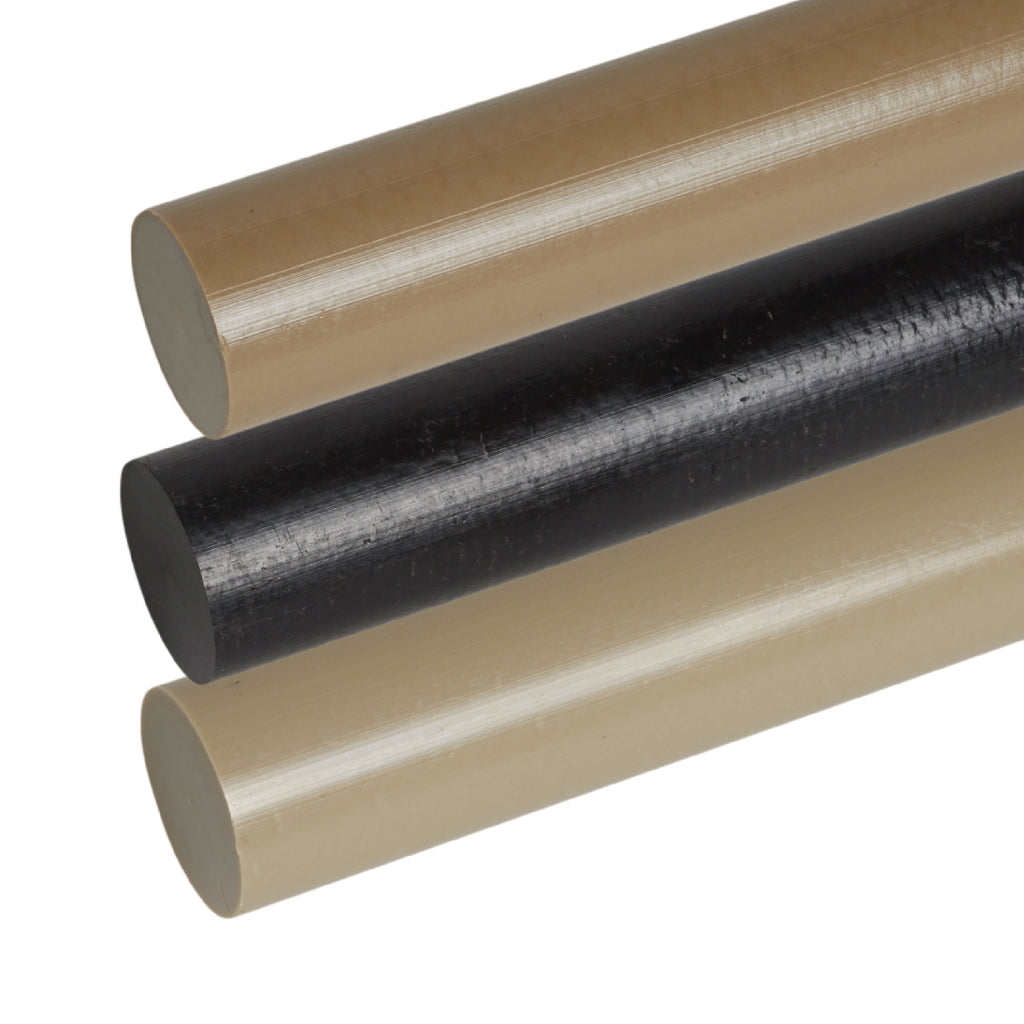

PEEK 30% Glass Filled Natural Rod

by Plastock
Save up to 50% Save %
£66.82 - £18,669.30
£66.82
£40.09
£40.09 - £12,446.21
£40.09
excl. VAT
SKU
Choose a Diameter (mm)
Choose a Length (mm)

PEEK 30% Glass Filled Natural Rod is a high performance engineering plastic with product characteristics including high rigidity and good dimensional stability, very low creep tendency and very high continuous service temperature.

PEEK 30% Glass Filled Natural Rod is a high performance engineering plastic with product characteristics including high rigidity and good dimensional stability, very low creep tendency and very high continuous service temperature. The long term service temperature range of PEEK Rod is from -20°C to 250°C and has a short term maximum service temperature of 310°C.

Typical fields of application for PEEK Rod include precision and electrical engineering, aerospace engineering and aircraft industries. PEEK Rod is a material well suited to billeting, precision grinding and CNC turning. Similar materials available from Plastock include PEEK 450G Medical Grade Natural Rod and PEEK 450G Extruded Black Rod.

If you have a requirement for machined or finished PEEK components please ask the Plastock team for more information.

Colour Natural
Density (g/cm³) 1.49
Ball indentation hardness (MPa) 80
CLTE (10⁻⁶K⁻¹) 30
Comparative tracking index 175
Dielectric constant 3.2
Dielectric strength (kV/mm) 20
Elongation at break (%) 3
Heat deflection temperature (°C) 315
Melting temperature (°C) 343
Shore hardness (scale D) 88
Surface resistivity (Ω) 10¹³
Tensile modulus of elasticity (MPa) 9700
Thermal conductivity (W/(m*K) 0.43
Volume resistivity (Ω*cm) 10¹⁴
Water absorption (%) 0.1
Yield stress (MPa) 156
Flammability 3mm VO
Flammability 6mm VO
Service temp long term min (°C) -20
Service temp long term max (°C) 250
Service temp short term max (°C) 310
Material type Glass Filled
