Description

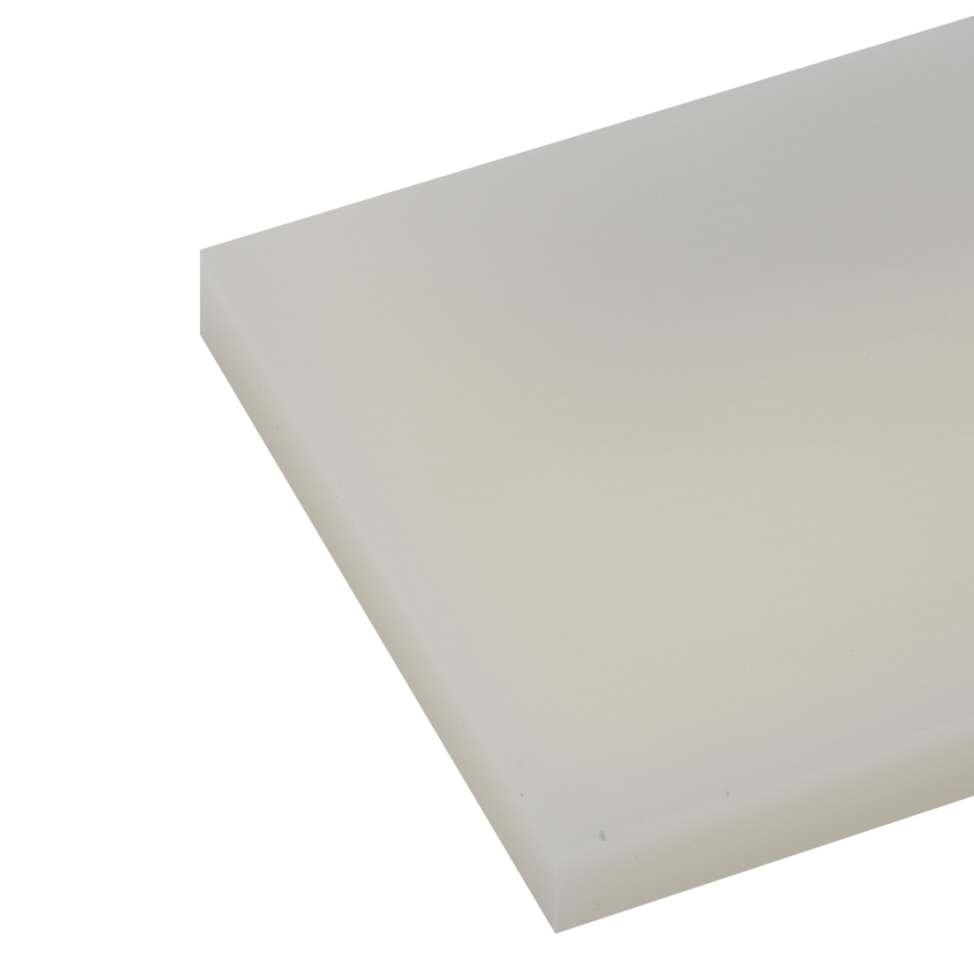

PE500 (HMWPE) Pressed and Planed Natural Sheet is a high performance polyethylene with product characteristics including high chemical resistance, very high impact strength and extremely low moisture absorption. The long term service temperature range of PE500 (HMWPE) Sheet is from 100°C to 80°C and has a short term maximum service temperature of 100°C. With a water absorption factor of <0.01% PE500 (HMWPE) Sheet is dimensionally very stable within humid environments.

Typical fields of application for PE500 (HMWPE) Sheet include chemical engineering and tank building, drinking and waste water technology and bottling and food industries. PE500 (HMWPE) Sheet is a material well suited to CNC routing, CNC milling and welding. Similar materials available from Plastock include Acetal C Extruded Natural Sheet and Nylon 66 Extruded Natural Sheet.

If you have a requirement for machined or finished PE500 (HMWPE) components please ask the Plastock team for more information.

Tech Specs

Colour	Natural
Density (g/cm³)	0.96
Yield stress (MPa)	27
Elongation at break (%)	>50
Shore hardness (scale D)	65
Tensile modulus of elasticity (MPa)	1200
Melting temperature (°C)	135
Thermal conductivity (W/(m*K)	0.4
Thermal capacity (kJ/(kg*K)	1.9
CLTE (10⁻⁶K⁻¹)	150…230
Service temp long term min (°C)	100
Service temp long term max (°C)	80
Service temp short term max (°C)	100
Heat deflection temperature (°C)	79
Dielectric constant	2.3
Dielectric strength (kV/mm)	45
Volume resistivity (Ω*cm)	>10¹⁴
Surface resistivity (Ω)	>10¹⁴
Comparative tracking index	600
Flammability 3mm	HB
Flammability 6mm	HB
Material type	Pressed/Planed
