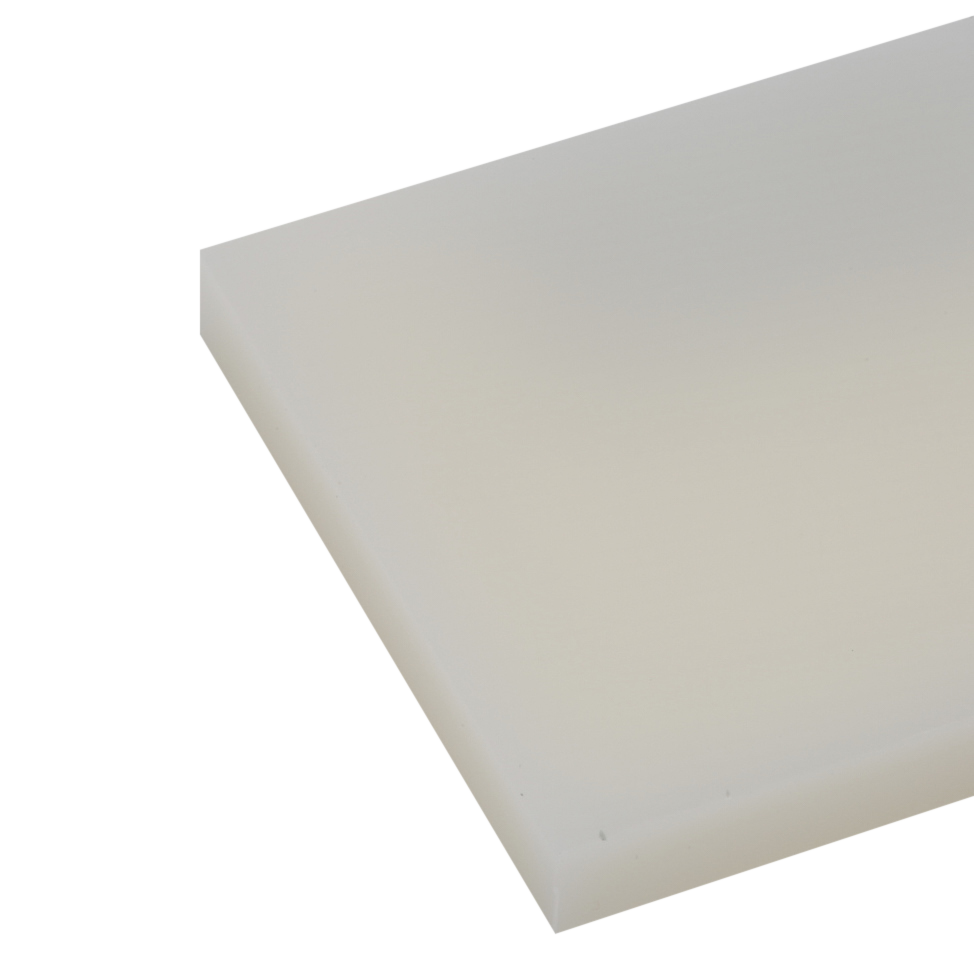

PE1000 (UHMWPE) Pressed and Planed Natural Sheet is a high performance virgin polyethylene with product characteristics including high abrasion resistance, low coefficient of friction and high impact strength. The long term service temperature range of PE1000 (UHMWPE) Sheet is from -50°C to 80°C and has a short term maximum service temperature of 130°C. With a water absorption factor of <0.01% PE1000 (UHMWPE) Sheet is dimensionally very stable within humid environments.
Typical fields of application for PE1000 (UHMWPE) Sheet include bottling and food processing, mechanical engineering and bearing and packing industries. PE1000 (UHMWPE) Sheet is a material well suited to CNC routing, CNC milling and CNC turning. Similar materials available from Plastock include Acetal C Extruded Natural Sheet and Nylon 66 Extruded Natural Sheet.
If you have a requirement for machined or finished PE1000 (UHMWPE) components please ask the Plastock team for more information.
| Material | PE1000 (UHMWPE) |
| Shape | Sheet |
| Colour | Natural |
| Density (g/cm³) | 0.93 |
| Yield stress (MPa) | 20 |
| Elongation at break (%) | >200 |
| Shore hardness (scale D) | 63 |
| Tensile modulus of elasticity (MPa) | 680 |
| Melting temperature (°C) | 135 |
| Thermal conductivity (W/(m*K) | 0.4 |
| Thermal capacity (kJ/(kg*K) | 1.9 |
| CLTE (10⁻⁶K⁻¹) | 150…230 |
| Service temp long term min (°C) | -50 |
| Service temp long term max (°C) | 80 |
| Service temp short term max (°C) | 130 |
| Heat deflection temperature (°C) | 79 |
| Dielectric constant | 2.3 |
| Dielectric strength (kV/mm) | 45 |
| Volume resistivity (Ω*cm) | >10¹⁴ |
| Surface resistivity (Ω) | >10¹⁴ |
| Comparative tracking index | 600 |
| Flammability 3mm | HB |
| Flammability 6mm | HB |
| Material type | Pressed/Planed |
