Description

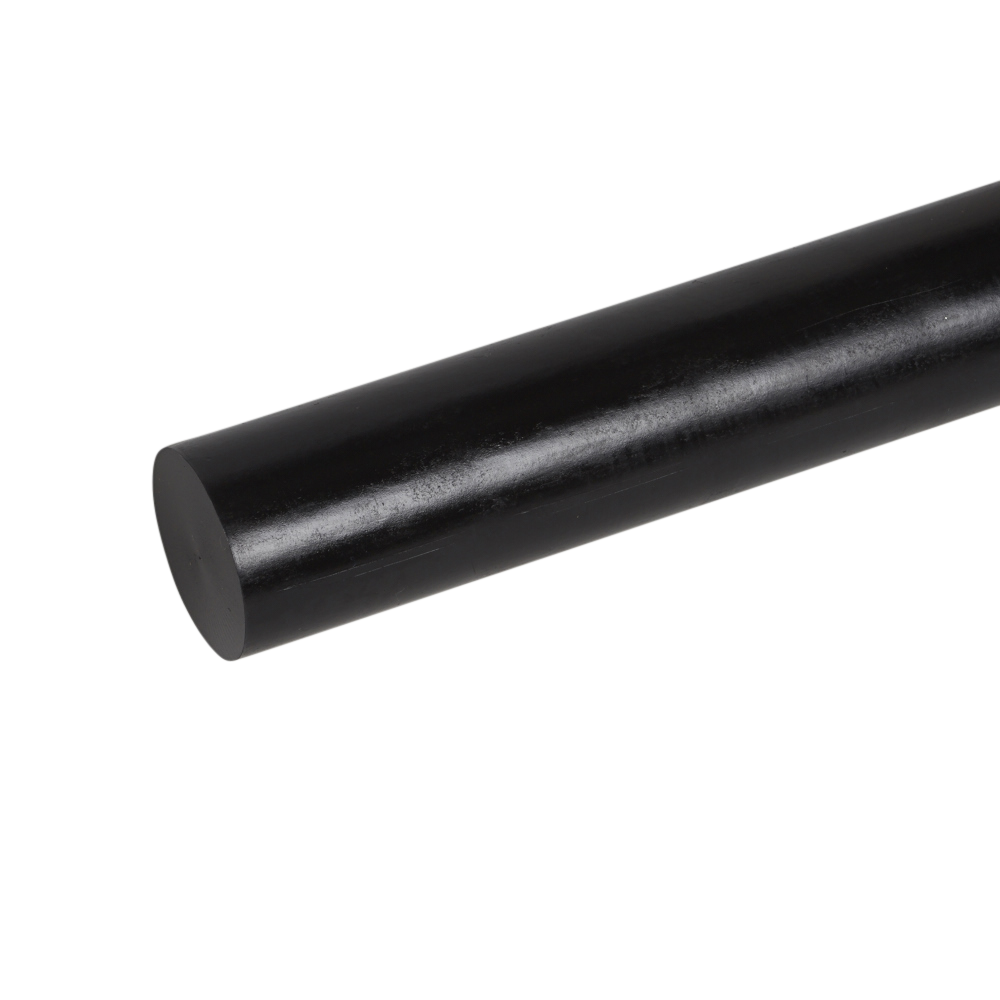

PE1000 (UHMWPE) Extruded Black Rod is a high performance polyethylene with product characteristics including high chemical resistance, very high impact strength and extremely low moisture absorption. The long term service temperature range of PE1000 (UHMWPE) Rod is from -250°C to 80°C and has a short term maximum service temperature of 130°C. With a water absorption factor of <0.01g/cm³ PE1000 (UHMWPE) Rod is dimensionally very stable within humid environments.

Typical fields of application for PE1000 (UHMWPE) Rod include construction, drinking and waste water technology and bottling and food industries. PE1000 (UHMWPE) Rod is a material well suited to Billeting, Precision grinding and CNC turning. Similar materials available from Plastock include PE300 (HDPE) Extruded Natural Rod and Acetal C Extruded Black Rod.

If you have a requirement for machined or finished PE1000 (UHMWPE) components please ask the Plastock team for more information.

Tech Specs

Colour	Black
Density (g/cm³)	0.93
Yield stress (MPa)	20
Elongation at break (%)	>200
Shore hardness (scale D)	63
Tensile modulus of elasticity (MPa)	700
Melting temperature (°C)	135
Thermal conductivity (W/(m*K)	0.4
Thermal capacity (kJ/(kg*K)	1.9
CLTE (10⁻⁶K⁻¹)	150…230
Service temp long term min (°C)	-250
Service temp long term max (°C)	80
Service temp short term max (°C)	130
Heat deflection temperature (°C)	79
Dielectric constant	2.3
Dielectric strength (kV/mm)	45
Volume resistivity (Ω*cm)	>10¹⁴
Surface resistivity (Ω)	>10¹⁴
Comparative tracking index	600
Flammability 3mm	HB
Flammability 6mm	HB
Material type	Extruded

Downloads

Technical Datasheet PE1000
