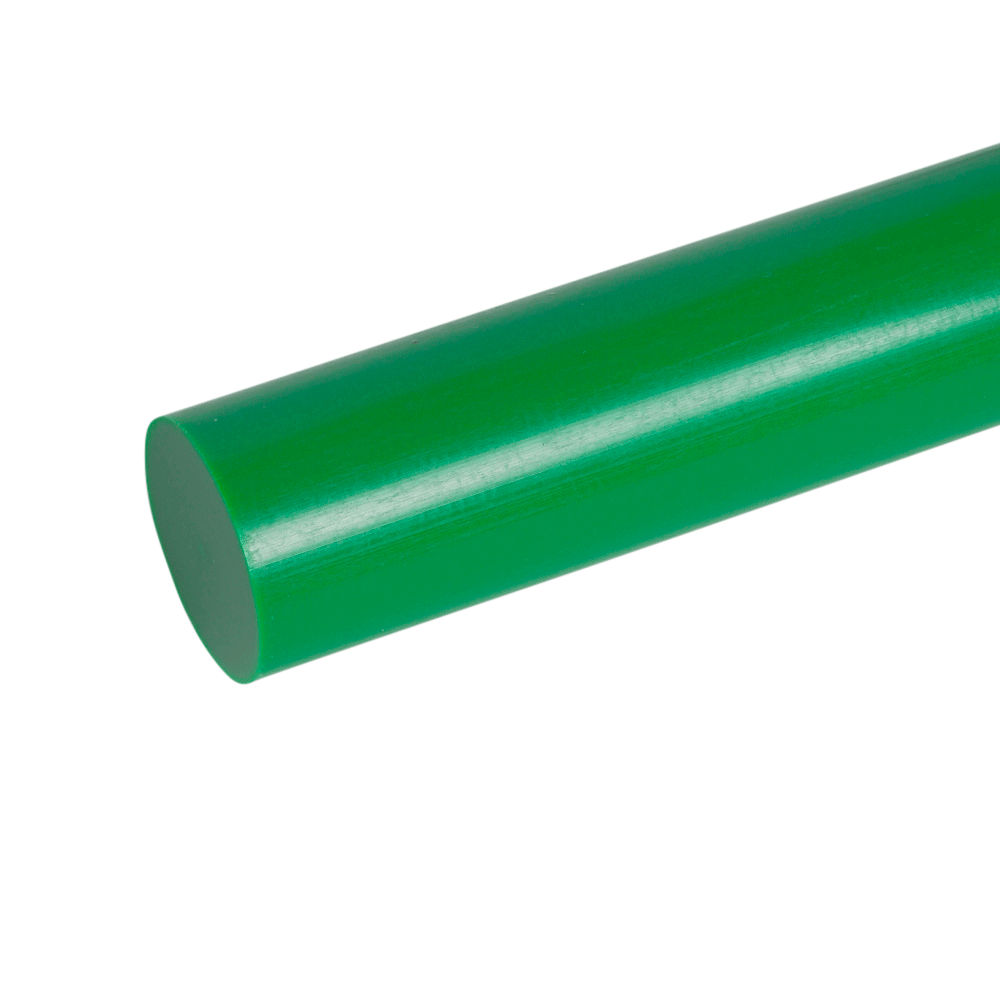

Nylon 6 PE Filled Green Rod is an engineering plastic with product characteristics including excellent sliding and abrasion resistance, high mechanical strength and high impact strength. The long term service temperature range of Nylon 6 Rod is from -40°C to 85°C and has a short term maximum service temperature of 160°C.
Typical fields of application for Nylon 6 Rod include mechanical engineering, bottling industries and conveyor industries. Nylon 6 Rod is a material well suited to CNC turning, billeting and precision grinding. Similar materials available from Plastock include Nylon 6 Oil Filled Yellow Rod and Nylon 6 Oil Filled Green Rod.
If you have a requirement for machined or finished Nylon 6 components please ask the Plastock team for more information.
| Material | Nylon 6 |
| Shape | Rod |
| Colour | Green |
| Density (g/cm³) | 1.14 |
| Water absorption (%) | 3 |
| Yield stress (MPa) | 80 |
| Elongation at break (%) | ≥50 |
| Notched impact strength (kJ/m²) | ≥3 |
| Ball indentation hardness (MPa) | 170 |
| Shore hardness (scale D) | 82 |
| Tensile modulus of elasticity (MPa) | 3200 |
| Melting temperature (°C) | 220 |
| Thermal capacity (kJ/(kg*K) | 1.7 |
| Thermal conductivity (W/(m*K) | 0.23 |
| CLTE (10⁻⁶K⁻¹) | 90 |
| Service temp long term min (°C) | -40 |
| Service temp long term max (°C) | 85 |
| Service temp short term max (°C) | 160 |
| Heat deflection temperature (°C) | 75 |
| Flammability 3mm | HB |
| Flammability 6mm | HB |
| Material type | PE Filled |
Minimum order value excluding VAT & delivery is £25
What is the cost of delivery?
Because of the huge variation in our orders we have developed a specialised shipping calculator for clients ordering online. Once you fill out your order details and progress through to the online checkout, our calculator will automatically work out the precise shipping cost for you to check before you proceed.
What delivery methods do you use?
We have a selection of couriers suited to the size, weight and type of product you order from us. It is likely we will deliver your goods with a courier service such as Tuffnells, TNT, DHL etc. You can track your order with the shipment number, if you would like us to send you the tracking number for your order please contact us or give us a call and we can track it for you.
If you would like to specify any special delivery instructions these can be entered at the point of ordering or please give us a call once you have placed your order and we will try to accommodate your requests.
Delivery options...
See our shipping page for more details.
