Description

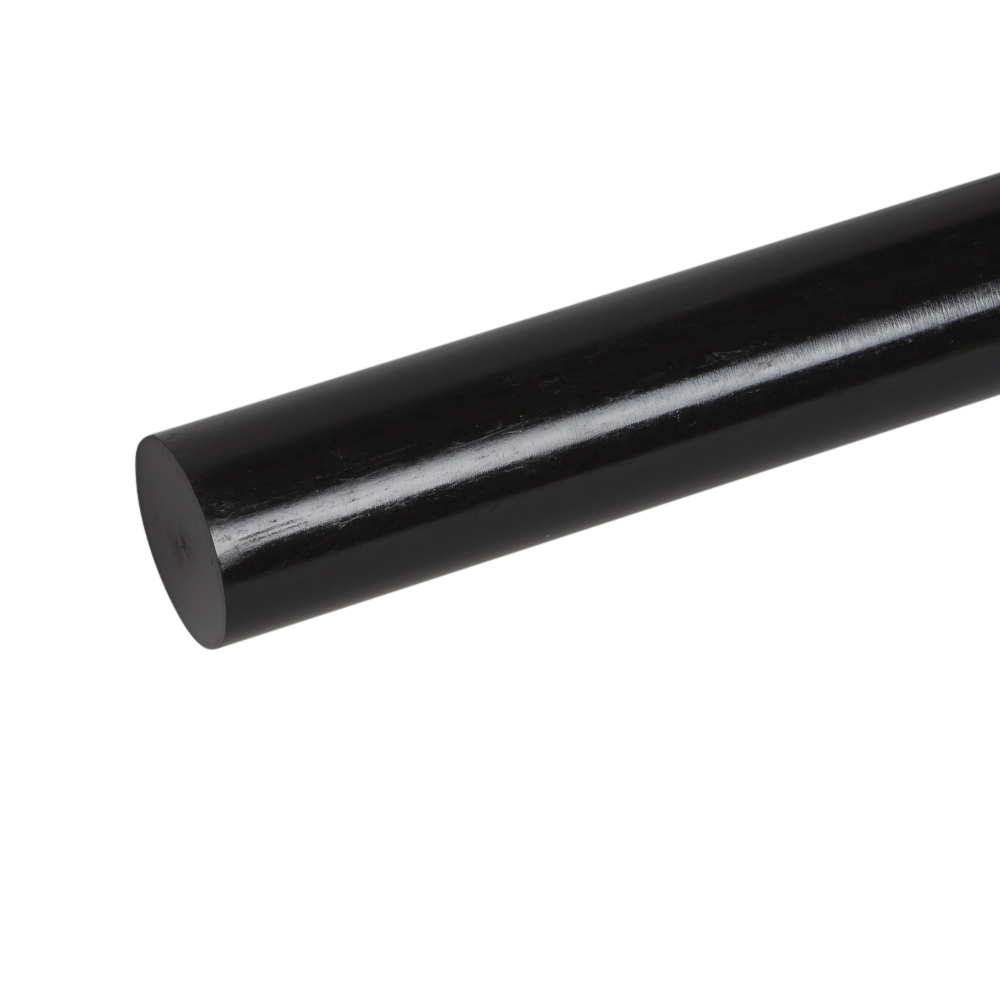

Nylon 6 Oil Filled Black Rod is an engineering plastic with product characteristics including excellent sliding properties, self-lubricating and improved "stick-slip" properties. The long term service temperature range of Nylon 6 Rod is from -40°C to 85°C and has a short term maximum service temperature of 160°C.

Typical fields of application for Nylon 6 Rod include mechanical engineering, packing industry and conveyor industries. Nylon 6 Rod is a material well suited to CNC turning, billeting and precision grinding. Similar materials available from Plastock include Nylon 6 Cast Natural Rod and Acetal C Extruded Natural Rod.

If you have a requirement for machined or finished Nylon 6 components please ask the Plastock team for more information.

Tech Specs

Colour	Black
Density (g/cm³)	1.14
Water absorption (%)	3
Yield stress (MPa)	80
Elongation at break (%)	≥50
Notched impact strength (kJ/m²)	≥3
Ball indentation hardness (MPa)	170
Shore hardness (scale D)	82
Tensile modulus of elasticity (MPa)	3200
Melting temperature (°C)	220
Thermal conductivity (W/(m*K)	0.23
Thermal capacity (kJ/(kg*K)	1.7
CLTE (10⁻⁶K⁻¹)	90
Service temp long term min (°C)	-40
Service temp long term max (°C)	85
Service temp short term max (°C)	160
Heat deflection temperature (°C)	75
Flammability 3mm	HB
Flammability 6mm	HB
Material type	Oil Filled

Downloads

Plastock Technical Datasheet Nylon 6 Cast Oil Filled
