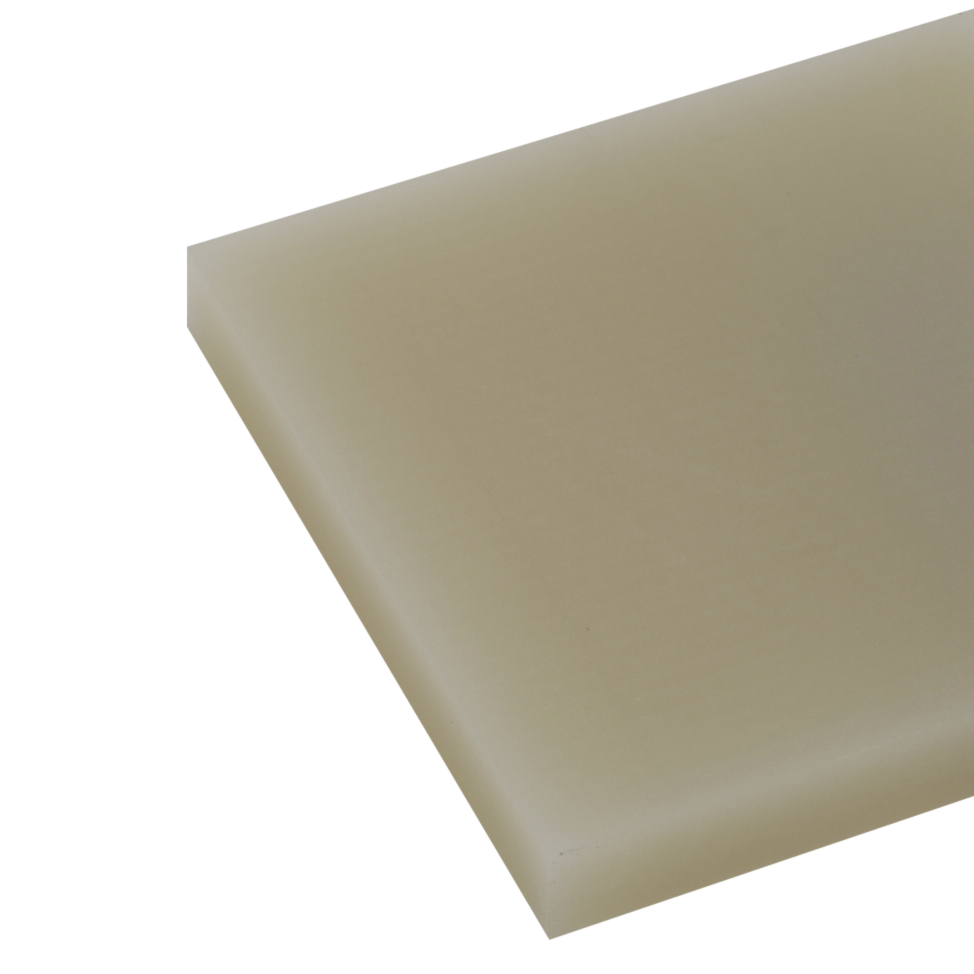

Nylon 12 30% Glass Filled Natural Sheet

Original price £2,620.25 - Original price £24,727.12
Original price
£2,620.25
£2,620.25 - £24,727.12
Current price £2,620.25
excl. VAT
SKU
Choose a Sheet Length (mm)
Choose a Sheet Width (mm)
Choose a Thickness (mm)

Nylon 12 30% Glass Filled Natural Sheet is an engineering plastic with product characteristics including high rigidity, high hardness and high dimensional stability.

Nylon 12 30% Glass Filled Natural Sheet is an engineering plastic with product characteristics that include high rigidity, high hardness and high dimensional stability. The long term service temperature range of Nylon 12 Sheet is from -40°C to 80°C and has a short term maximum service temperature of 150°C.

Typical fields of application for Nylon 12 Sheet include mechanical engineering, chemical industry and electrical and electronic industries. Nylon 12 Sheet is a material well suited to CNC routing, CNC milling and CNC turning. Similar materials available from Plastock include Nylon 12 Extruded Natural Sheet and Nylon 66 30% Glass Filled Black Sheet.

If you have a requirement for machined or finished Nylon 12 components please ask the Plastock team for more information.

Colour Natural
Density (g/cm³) 1.25
CLTE (10⁻⁶K⁻¹) 50
Comparative tracking index 600
Dielectric constant 4.1
Dielectric strength (kV/mm) 40
Elongation at break (%) 12
Heat deflection temperature (°C) 130
Melting temperature (°C) 178
Surface resistivity (Ω) 10¹⁴
Tensile modulus of elasticity (MPa) 4000
Volume resistivity (Ω*cm) 10¹⁵
Water absorption (%) 0.5
Yield stress (MPa) 70
Flammability 3mm HB
Flammability 6mm HB
Service temp long term min (°C) -40
Service temp long term max (°C) 80
Service temp short term max (°C) 150
Material type Glass Filled
