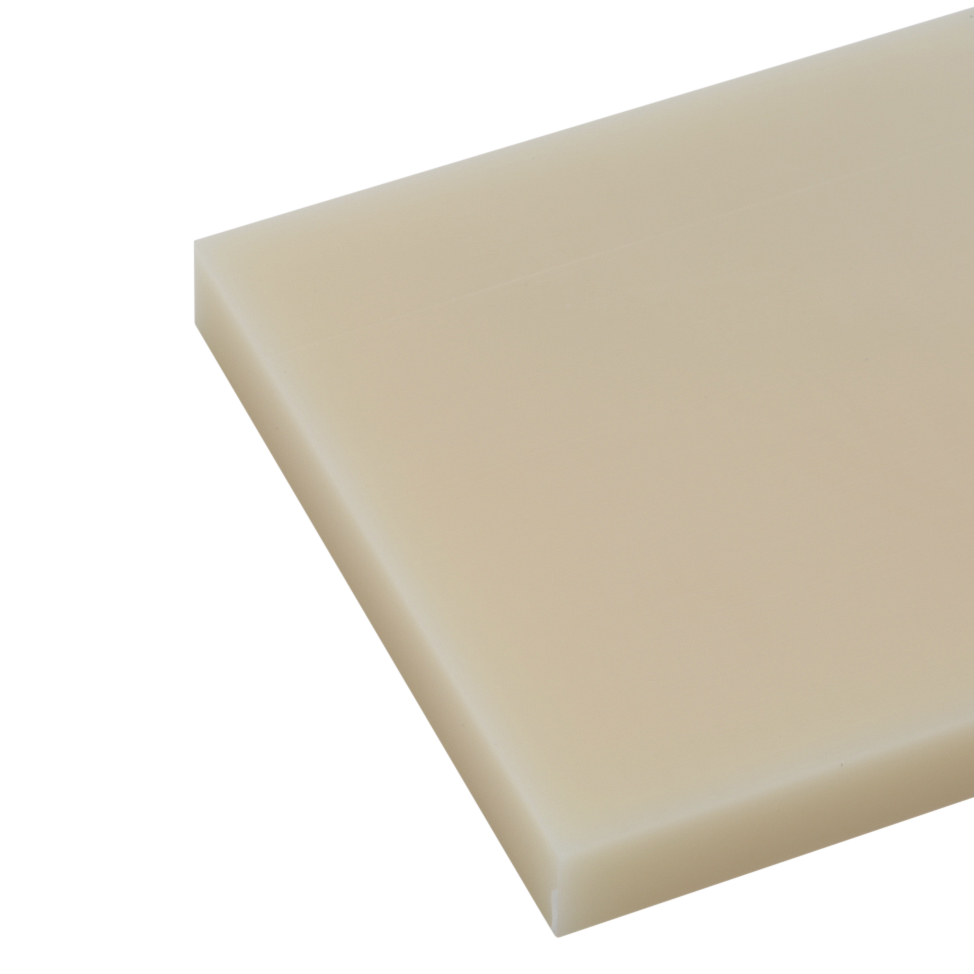

ABS Natural Sheet is an engineering plastic with product characteristics including low moisture absorption, high noise absorption and high rigidity and stiffness. The long term service temperature range of ABS Sheet is from -40°C to 80°C and has a short term maximum service temperature of 100°C.
Typical fields of application for ABS Sheet include vehicle construction, precision and electrical industries and sanitary engineering. ABS Sheet is a material well suited to CNC routing, CNC milling and CNC turning. Similar materials available from Plastock include ABS Grey Sheet and Acetal C Extruded Natural Sheet.
If you have a requirement for machined or finished ABS components please ask the Plastock team for more information.
| Material | ABS |
| Shape | Sheet |
| Colour | Natural |
| Density (g/cm³) | 1.07 |
| Water absorption (%) | 0.3 |
| Yield stress (MPa) | 45 |
| Elongation at break (%) | 20 |
| Notched impact strength (kJ/m²) | 11 |
| Ball indentation hardness (MPa) | 90 |
| Shore hardness (scale D) | 78 |
| Tensile modulus of elasticity (MPa) | 2400 |
| Thermal conductivity (W/(m*K) | 0.17 |
| Thermal capacity (kJ/(kg*K) | 1.2 |
| CLTE (10⁻⁶K⁻¹) | 90 |
| Service temp long term min (°C) | -40 |
| Service temp long term max (°C) | 80 |
| Service temp short term max (°C) | 100 |
| Dielectric constant | 3.1 |
| Dielectric strength (kV/mm) | 20 |
| Volume resistivity (Ω*cm) | 10¹⁵ |
| Surface resistivity (Ω) | 10¹⁴ |
| Comparative tracking index | 600 |
| Flammability 3mm | HB |
| Flammability 6mm | HB |
| Material type |
