PETP

PETP

Polyethylene Terephthalate

Polyethylene Terephthalate

Polyethylene Terephthalate, commonly referred to as PETP in engineering contexts or PET in packaging, is a high-performance, semi-crystalline thermoplastic polyester. It is distinguished by its high dimensional stability, excellent sliding properties, and resistance to wear.

While widely recognised in the bottling industry, engineering-grade PETP is a preferred material for precision mechanical parts where the combination of high tensile strength and low moisture absorption is critical.

Key Properties

Mechanical & Physical

  • High Dimensional Stability
    Extremely low thermal expansion and low moisture uptake ensure parts remain within tolerance.
  • Excellent Wear Resistance
    Comparable to polyacetal (POM) but with superior performance in abrasive environments.
  • Good Chemical Resistance
    Highly resistant to acids, salts, and various hydrocarbons.
  • High Mechanical Strength
    Superior tensile strength and modulus compared to many other common engineering plastics.

Chemical & Thermal

  • Low Coefficient of Friction
    Ideal for bearing and sliding applications without the need for additional lubrication.
  • Creep Resistance
    Exhibits minimal deformation under long-term mechanical stress.
  • Excellent Electrical Insulation
    High dielectric strength remains stable across various temperatures and humidity levels.
  • Food Contact Compliance
    PETP is considered physiologically and chemically inert. It is non-toxic, resistant to microorganisms, and does not leach harmful substances.

COMMON APPLICATIONS

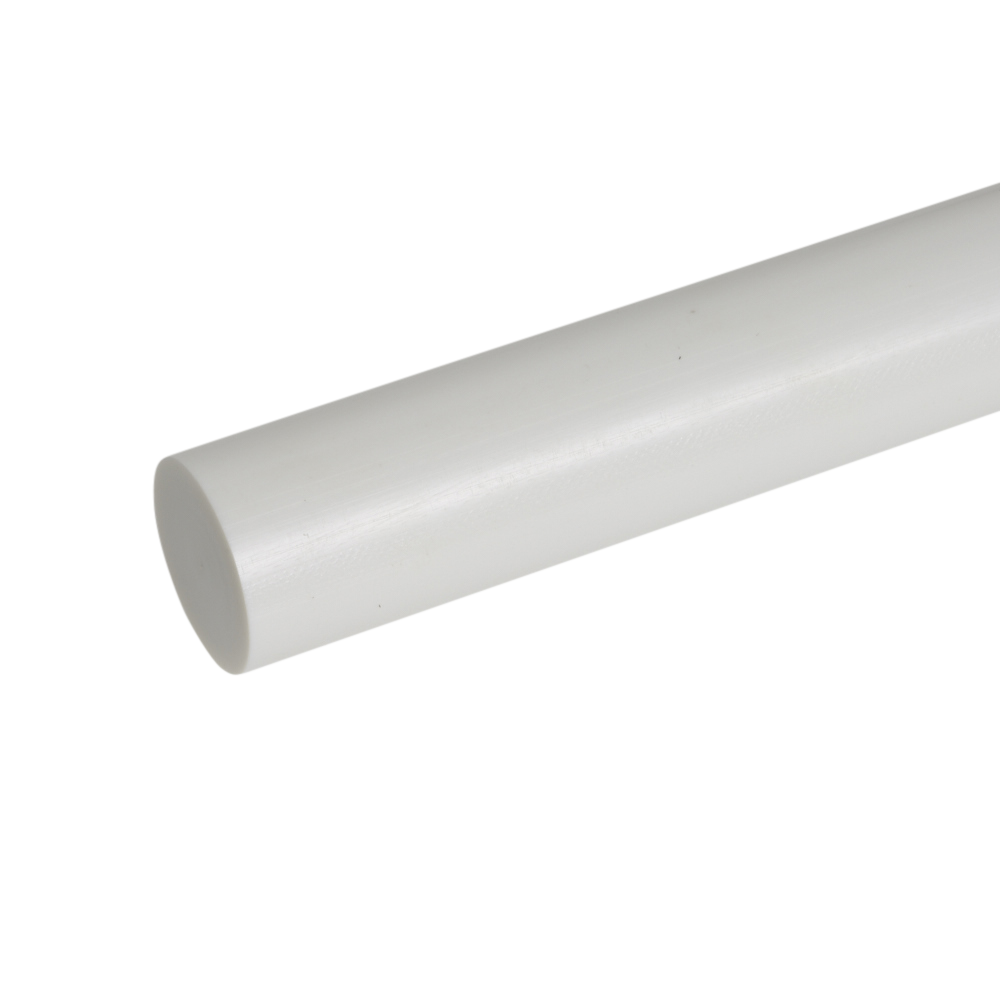

PETP Extruded Natural Rod | Plastock
PETP Extruded Natural Rod | Plastock

PETP Natural Rod

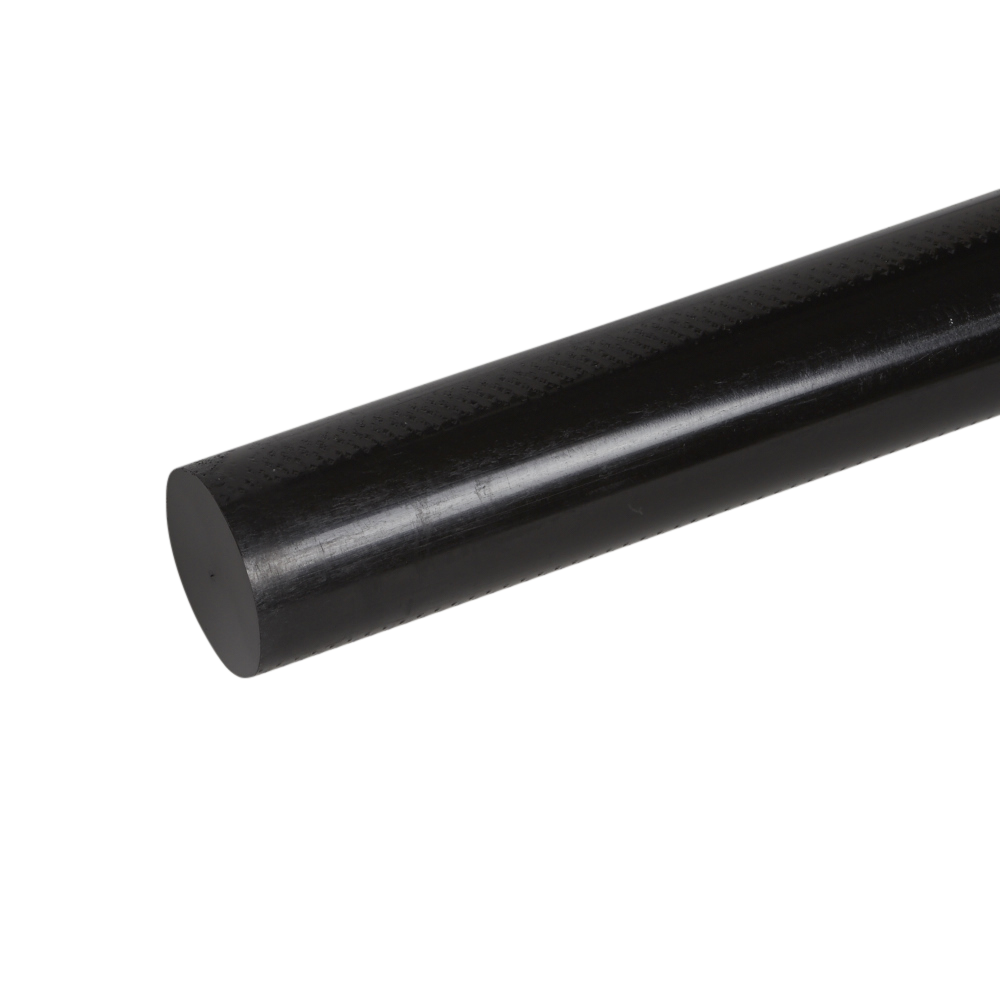

PETP Extruded Black Rod | Plastock
PETP Extruded Black Rod | Plastock

PETP Black Rod

PETP Extruded Natural Sheet | Plastock
PETP Extruded Natural Sheet | Plastock

PETP Natural Sheet

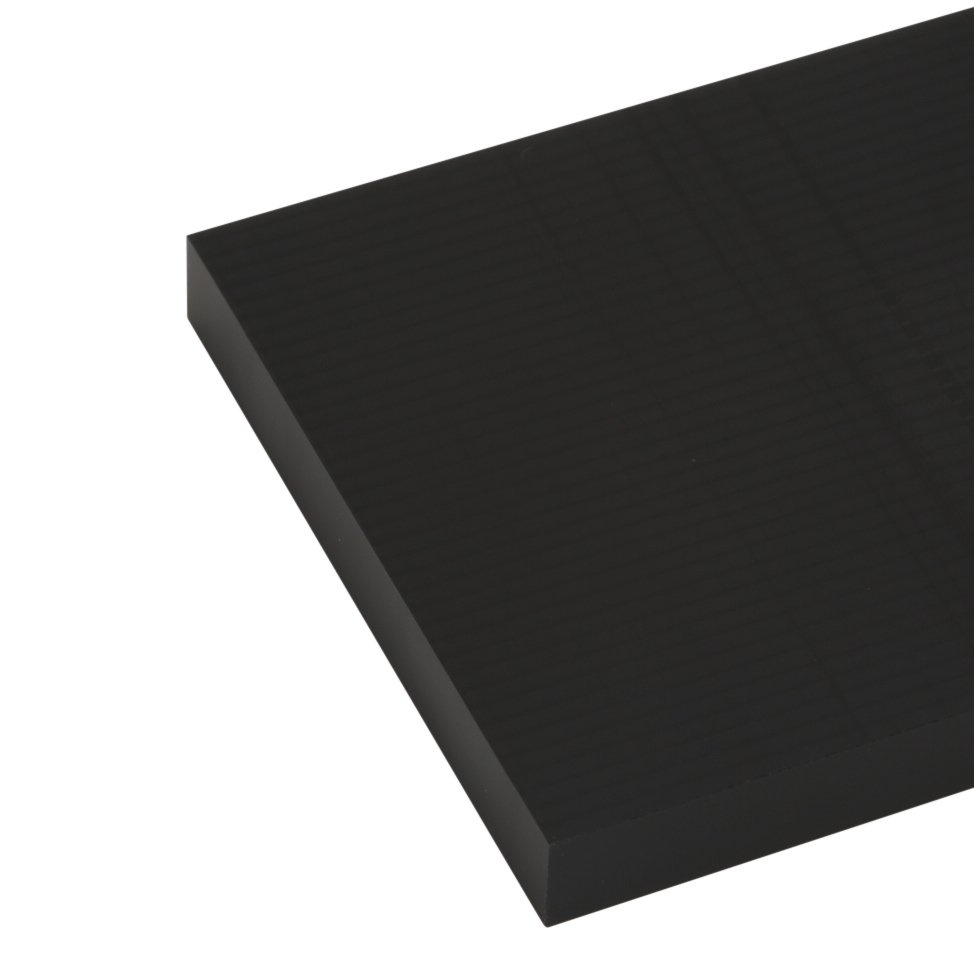

PETP Extruded Black Sheet | Plastock
PETP Extruded Black Sheet | Plastock

PETP Black Sheet

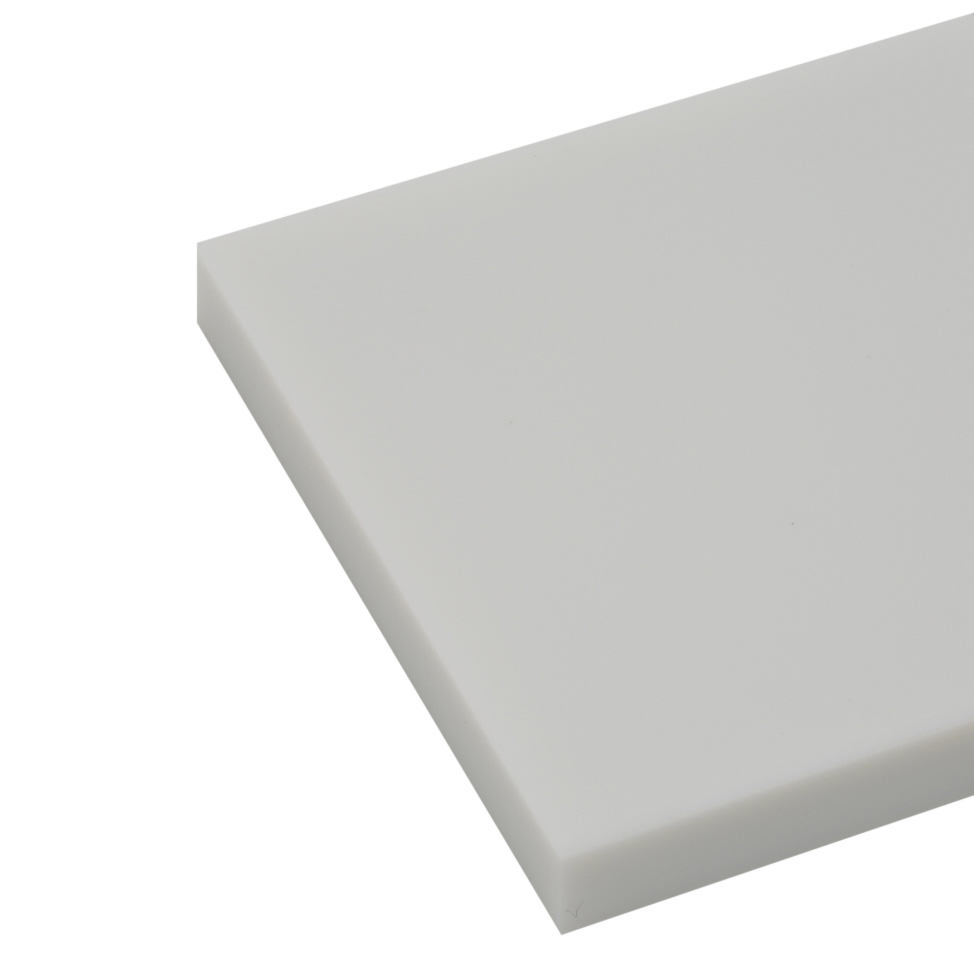

PETP PTFE Filled Natural Sheet | Plastock
PETP PTFE Filled Natural Sheet | Plastock

PETP PTFE Filled Natural Sheet

PETP Extruded Natural Rod | Plastock
PETP Extruded Natural Rod | Plastock

PETP Natural Rod

PETP Extruded Black Rod | Plastock
PETP Extruded Black Rod | Plastock

PETP Black Rod

PETP Extruded Natural Sheet | Plastock
PETP Extruded Natural Sheet | Plastock

PETP Natural Sheet

PETP Extruded Black Sheet | Plastock
PETP Extruded Black Sheet | Plastock

PETP Black Sheet

Technical Details

 TEST METHODVALUEVALUE (IMPERIAL)
PHYSICAL PROPERTIES
DensityISO 11831.38 g/cm³0.050 lb/in³
Water Absorption (24h)ISO 620.02%0.02%
Water Absorption (Saturation)ISO 620.5%0.5%
MECHANICAL PROPERTIES
Tensile Strength at YieldISO 52785 MPa12,300 psi
Tensile Modulus of ElasticityISO 5273,300 MPa478.6 ksi
Elongation at YieldISO 5274%4%
Elongation at BreakISO 52715%15%
Flexural StrengthISO 178120 MPa17,400 psi
Flexural ModulusISO 1783,000 MPa435 ksi
Charpy Impact (Notched)ISO 1793.0 kJ/m²1.4 ft-lb/in²
Rockwell HardnessISO 2039-2M95M95
THERMAL PROPERTIES
Melting TemperatureISO 11357255°C491°F
Heat Deflection Temp (1.8 MPa)ISO 7580°C176°F
Max. Service Temp (Long Term)110°C230°F
Min. Service Temp-20°C-4°F
Thermal expansion (CLTE) ISO 1135960 x 10⁻⁶/K3.3 x 10⁻⁵ in/in/°F
Thermal ConductivityDIN 526120.28 W/(m·K)1.94 BTU·in/(hr·ft²·°F)
Flammability RatingUL 94HBHB
ELECTRICAL PROPERTIES
Dielectric StrengthIEC 6024322 kV/mm
Volume ResistivityIEC 6009310¹⁵ Ω·cm
Surface ResistivityIEC 6009310¹⁴ Ω
Dielectric Constant (1 MHz)IEC 602503.2
Dissipation Factor (1 MHz)IEC 602500.02

Values are representative of typical unfilled, injection-moulded Nylon 12.
They are typical average values and should be used for material selection and design guidance only.

Technical Details

 TEST METHODVALUE
PHYSICAL PROPERTIES
DensityISO 11831.38 g/cm³
Water Absorption (24h)ISO 620.02%
Water Absorption (Saturation)ISO 620.5%
MECHANICAL PROPERTIES
Tensile Strength at YieldISO 52785 MPa
Tensile Modulus of ElasticityISO 5273,300 MPa
Elongation at YieldISO 5274%
Elongation at BreakISO 52715%
Flexural StrengthISO 178120 MPa
Flexural ModulusISO 1783,000 MPa
Charpy Impact (Notched)ISO 1793.0 kJ/m²
Rockwell HardnessISO 2039-2M95
THERMAL PROPERTIES
Melting TemperatureISO 11357255°C
Heat Deflection Temp (1.8 MPa)ISO 7580°C
Max. Service Temp (Long Term)110°C
Min. Service Temp-20°C
Thermal expansion (CLTE) ISO 1135960 x 10⁻⁶/K
Thermal ConductivityDIN 5261270.28 W/(m·K)
Flammability RatingUL 94HB
ELECTRICAL PROPERTIES
Dielectric StrengthIEC 6024322 kV/mm
Volume ResistivityIEC 6009310¹⁵ Ω·cm
Surface ResistivityIEC 60093 10¹⁴ Ω
Dielectric Constant (1 MHz)IEC 602503.2
Dissipation Factor (1 MHz)IEC 602500.02

Values are representative of typical unfilled, injection-moulded Nylon 12. They are typical average values and should be used for material selection and design guidance only.

CHEMICAL RESISTANCE

 CATEGORYREPRESENTATIVE SUBSTANCERATINGNOTES
Acids (Weak)Acetic Acid (10%)AStable against most diluted organic acids.
Acids (Strong)Sulphuric Acid (98%)CRapidly decomposed by concentrated acids.
AlcoholsEthanol, IsopropanolAResistant to most common alcohols.
Alkalis (Bases)Sodium HydroxideCHighly susceptible to hydrolysis by bases.
Aromatic HydrocarbonsTolueneAGenerally excellent resistance.
Chlorinated SolventsChloroformCCauses significant swelling or dissolution.
FuelsPetrol, DieselAWidely used in fuel handling systems.
KetonesAcetone, Methyl Ethyl Ketone (MEK)BLimited contact recommended; may cause stress cracking.
Oxidizing AgentsOzoneBModerate resistance, long-term exposure affects properties.
Water / SteamHot Water (>70°C)CRisk of hydrolysis, strength drops significantly in steam.

RATING SCALE:
A (Excellent): Little to no effect.
B (Good/Fair): Minor swelling or slight changes in properties; acceptable for short-term exposure.
C (Poor): Severe degradation or stress cracking. Not recommended.

CHEMICAL RESISTANCE

 CATEGORYEXAMPLERATING
Acids (Weak)Acetic Acid (10%)A
Acids (Strong)Sulphuric Acid (98%)C
AlcoholsEthanol, IsopropanolA
Alkalis (Bases)Sodium HydroxideC
Aromatic HydrocarbonsTolueneA
Chlorinated SolventsChloroformC
FuelsPetrol, DieselA
KetonesAcetoneB
Oxidizing AgentsOzoneB
Water / SteamHot Water (>70°C)C

RATING SCALE:
A (Excellent): Little to no effect.
B (Good/Fair): Minor swelling or slight changes in properties; acceptable for short-term exposure.
C (Poor): Severe degradation or stress cracking. Not recommended.
