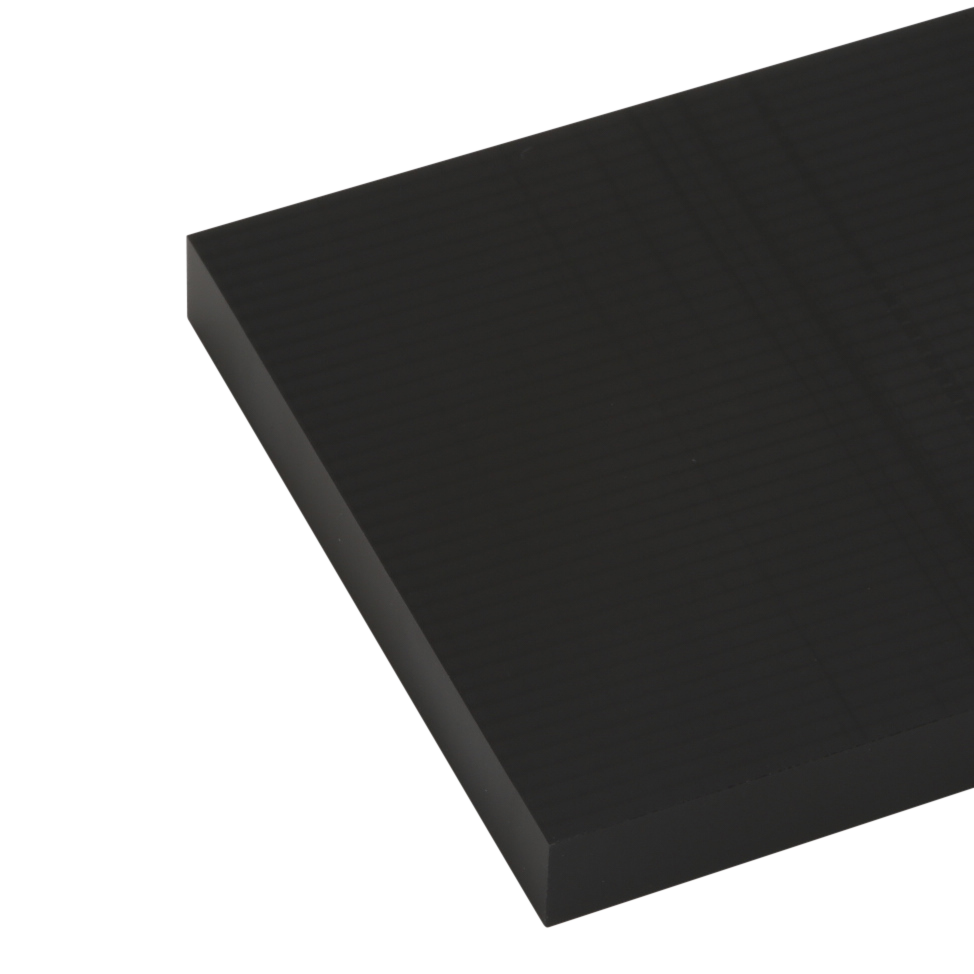

Acetal C Extruded Black Sheet - Cut to Size
The price will update as you configure your sheet
- Tech Specs
Acetal C Extruded Black Sheet is an engineering plastic with product characteristics including High chemical resistance, High dimensional stability and Low moisture absorption. The long term service temperature range of Acetal C Sheet is from -50°C to 100°C and has a short term maximum service temperature of 140°C.
Typical fields of application for Acetal C Sheet include Mechanical engineering, Electrical and electronic industries and Medical technology. Acetal C Sheet is a material well suited to CNC routing, CNC milling and CNC turning. Similar materials available from Plastock include Acetal C Medical Grade Sheet and Nylon Sheet.
If you have a requirement for machined or finished Acetal C components please ask the Plastock team for more information.
|Ball indentation hardness (MPa)||150|
|Comparative tracking index||600|
|Dielectric strength (kV/mm)||40|
|Elongation at break (%)||30|
|Heat deflection temperature (°C)||110|
|Melting temperature (°C)||165|
|Notched impact strength (kJ/m²)||6|
|Shore hardness (scale D)||81|
|Surface resistivity (Ω)||10¹³|
|Tensile modulus of elasticity (MPa)||2800|
|Thermal capacity (kJ/(kg*K)||1.5|
|Thermal conductivity (W/(m*K)||0.31|
|Volume resistivity (Ω*cm)||10¹³|
|Water absorption (%)||0.2|
|Yield stress (MPa)||67|
|Service temp long term min (°C)||-50|
|Service temp long term max (°C)||100|
|Service temp short term max (°C)||140|
